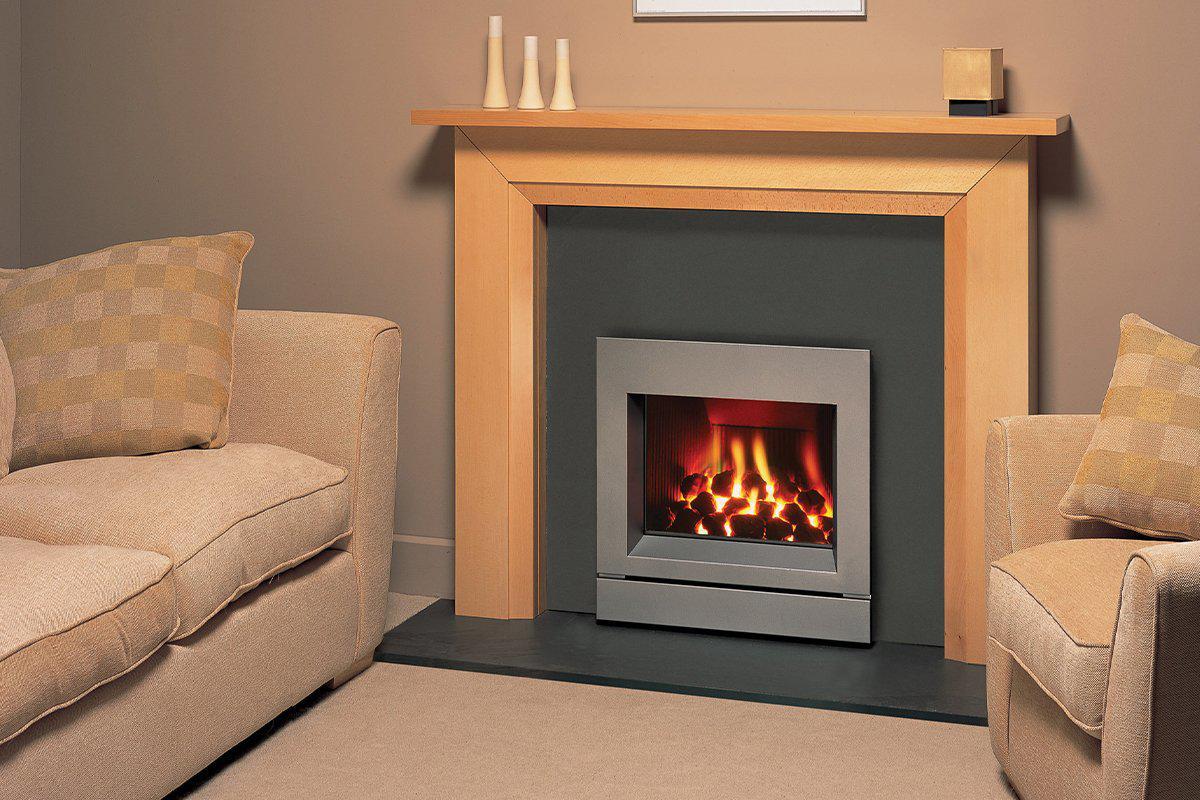

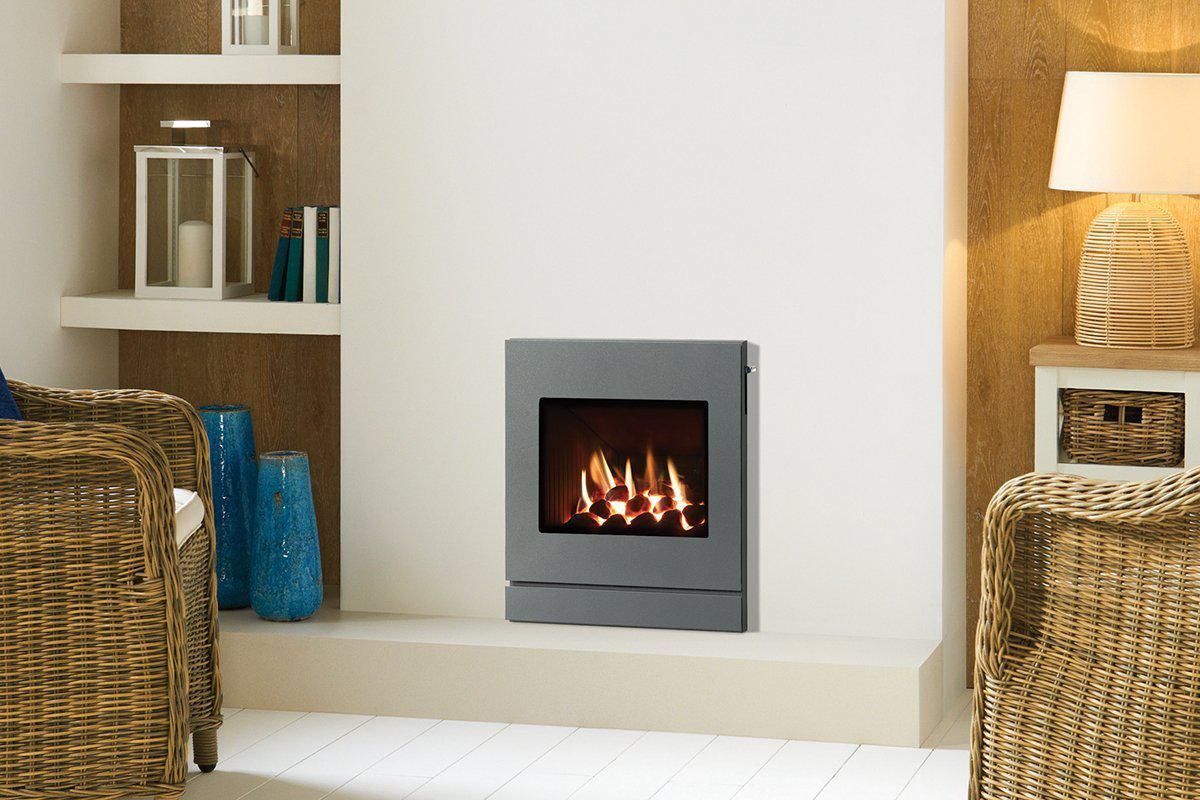

The Logic HE features a glass front and boasts the highest efficiency of all the Logic Fires at up to 89%. The HE offers a choice of either logs, coal or white stone or upgradeable coloured glass beadΔ fuel effects (1). With both conventional and balanced flue models, the HE is even suitable for homes without a chimney!*
The Logic HE box draws cool room air into the bottom of the convection chamber (2) the cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot (3). Maximum heat is radiated into the room via the virtually invisible glass front (4). The Logic HE balanced flue, Coal-effect and White Stone fires have been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall.
* Balanced flue models only.
Designio2 Iridium Logic HE Balanced Flue Gas Fire
| Efficiency | CF: Up to 89% BF: Up to 86% |
| Heat output | CF: Up to 4.50kW (input 5.1kW) BF: Up to 3.40kW (input 4.00kW) |
| Manual versions | Yes |
| Slide control | Yes |
| Remote control | Yes |
| Fits into standard 410x560x250mm (wxhxd) fireplace opening |
Yes |
| Fuel bed options | Coal, White stone, Logs & Coloured Glass Beads |
| Convected heat | Yes |
| Radiant heat | Yes |
| Wide selection of frames | Yes |
| Natural Gas or LPG | Yes |
| Can be wall mounted | Yes |
| Variable flame colour | No |
| Ambient open fire | No |
| Glass fronted high efficiency | Yes |
| ODS (Oxygen Depletion Sensor) | Yes |
| Additional air vent required | No |
| Conventional Flue | Yes |
| Balanced Flue | Yes |
| Energy Efficiency Class | B* |
*This product is not suitable for primary heating purposes.
