Fondis Ulys 900 Corner

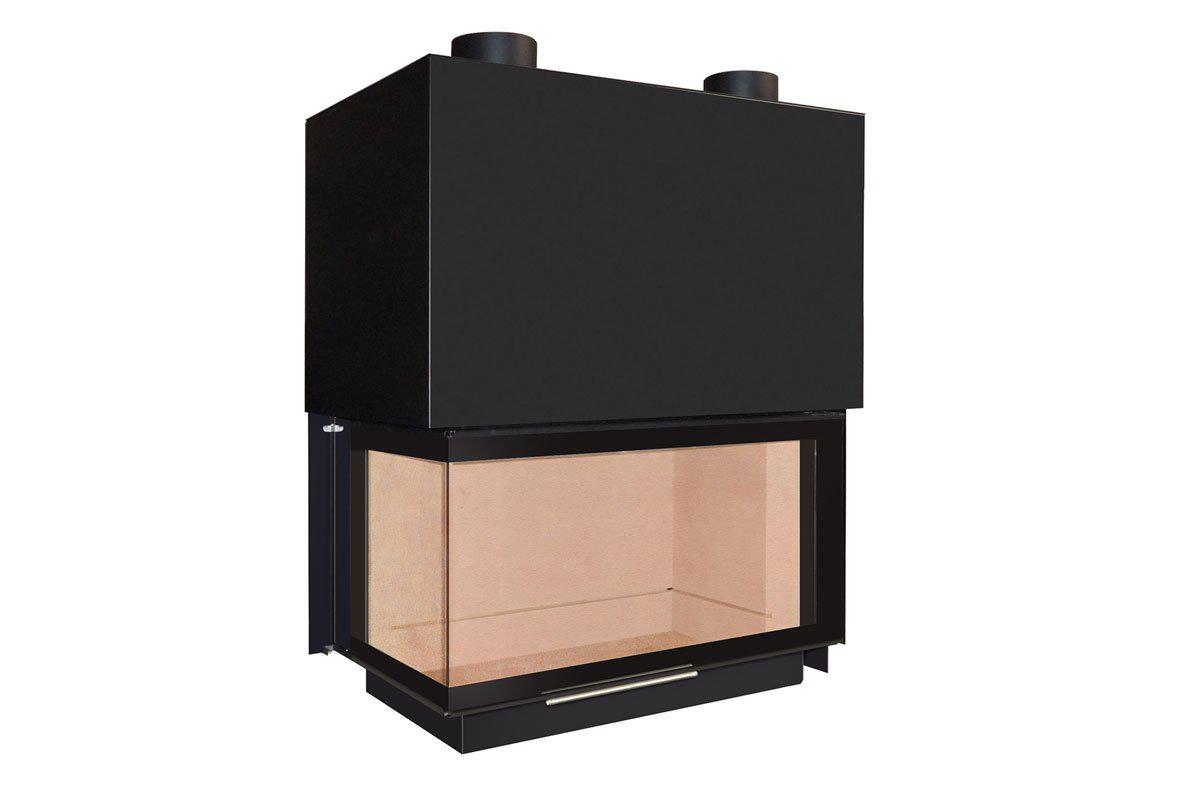

Fondis Ulys 900 Wood Burning Corner Inset, Corner Stove

Designed to be installed in the corner of a room the Fondis Ulys 900 can come as either a right-handed or left-handed version. With a heat output of 15kW this efficient wood burning inset is not just for show.

Technical
General
HEIGHT (MM) 1730
WIDTH (MM) 914
DEPTH (MM) 629
INTERNAL DIAMETER OF FLUE OUTLET (MM) 175-250
FLUE DIAMETER (MM) 250
FUEL Wood

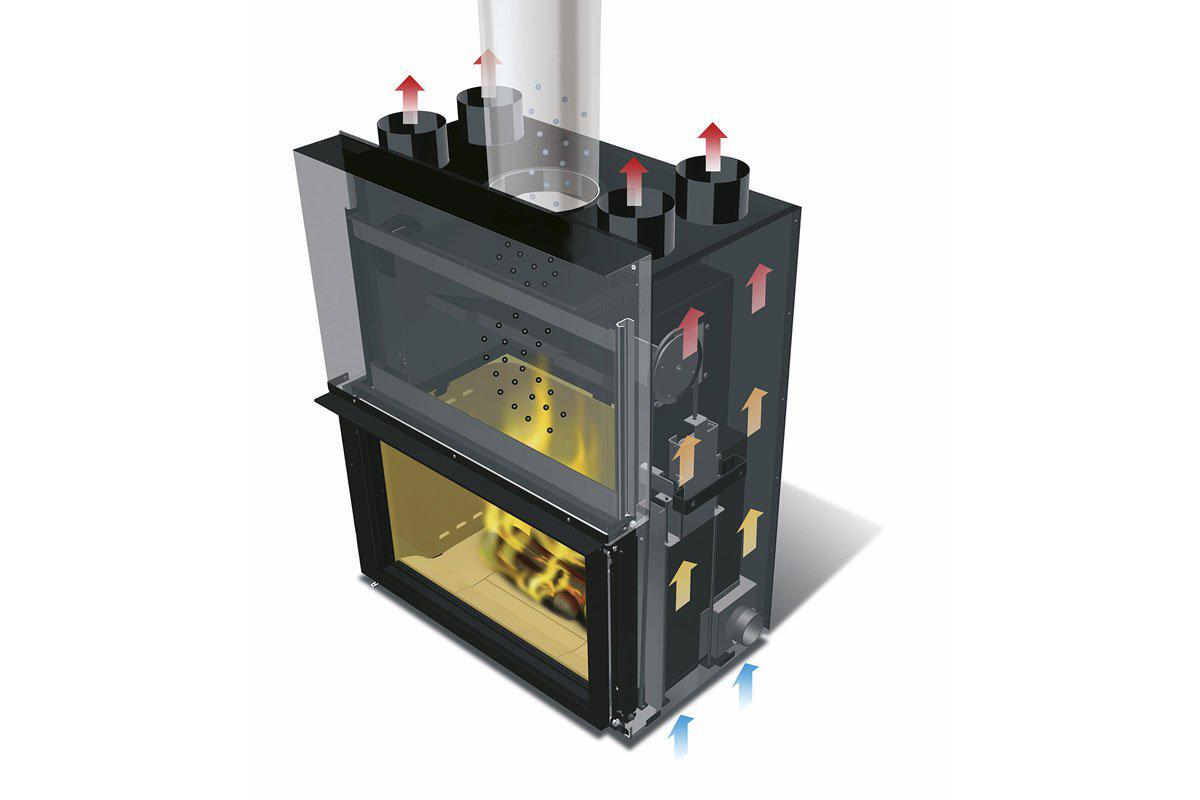

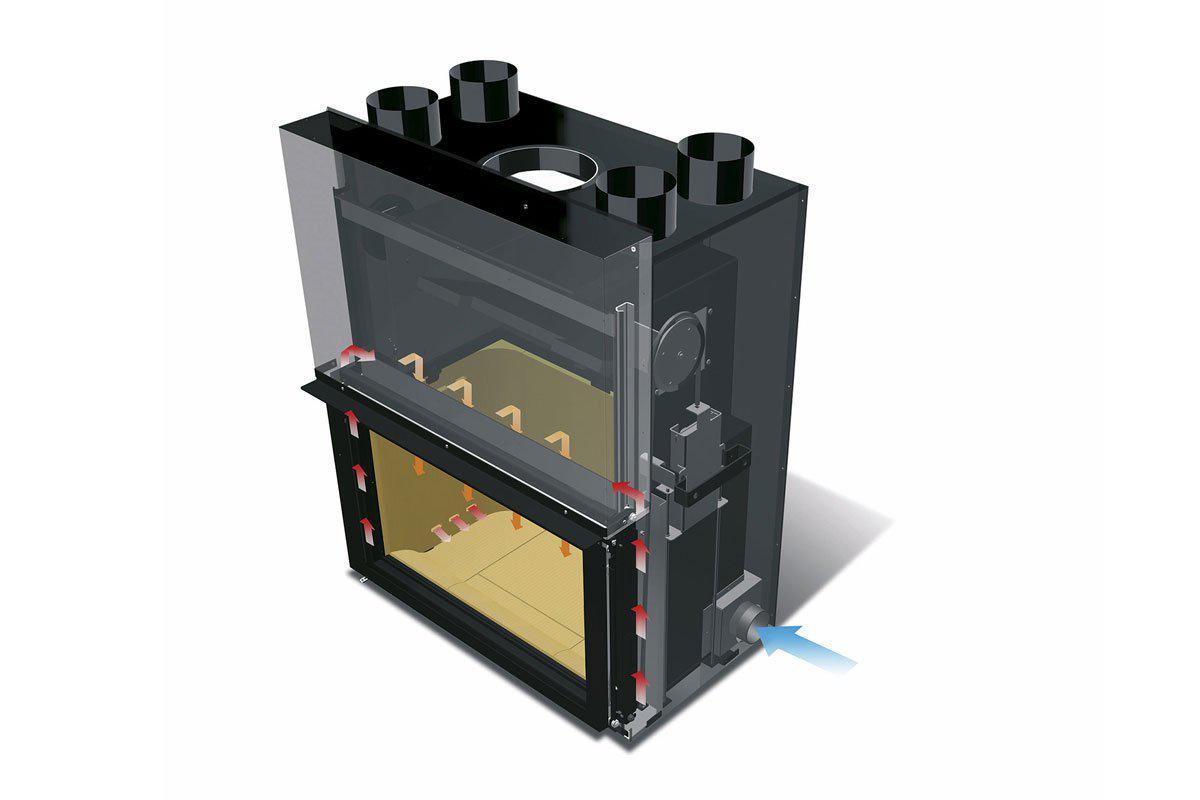

AIRWASH Yes
ECODESIGN READY -
ENERGY EFFICIENCY CLASS A
WEIGHT (KG) 237
MAX LOG LENGTH (CM) 60
Normal Rate
NOMINAL HEAT OUTPUT (kW) 15.9
EFFICIENCY (%) 79
CO EMISSIONS (% @ 13% O2) 0.16
DUST EMISSIONS (MG/M3 @ 13% O2) 60
WOOD CONSUMPTION (KG/H) 4.32
Reduced Rate
HEAT OUTPUT (kW) 5
WOOD CONSUMPTION (KG/H) 1.5
Dimensions

Fondis Ulys 900 Corner Dimensions

Downloads

Fondis Ulys Manual (pdf)

Installation Supplement (pdf)

MVHR Manufacturers Declaration (pdf)

#

Ulys Fire Brick Exploded Diagram (pdf)

Ulys Frame Fitting Guide (pdf)
