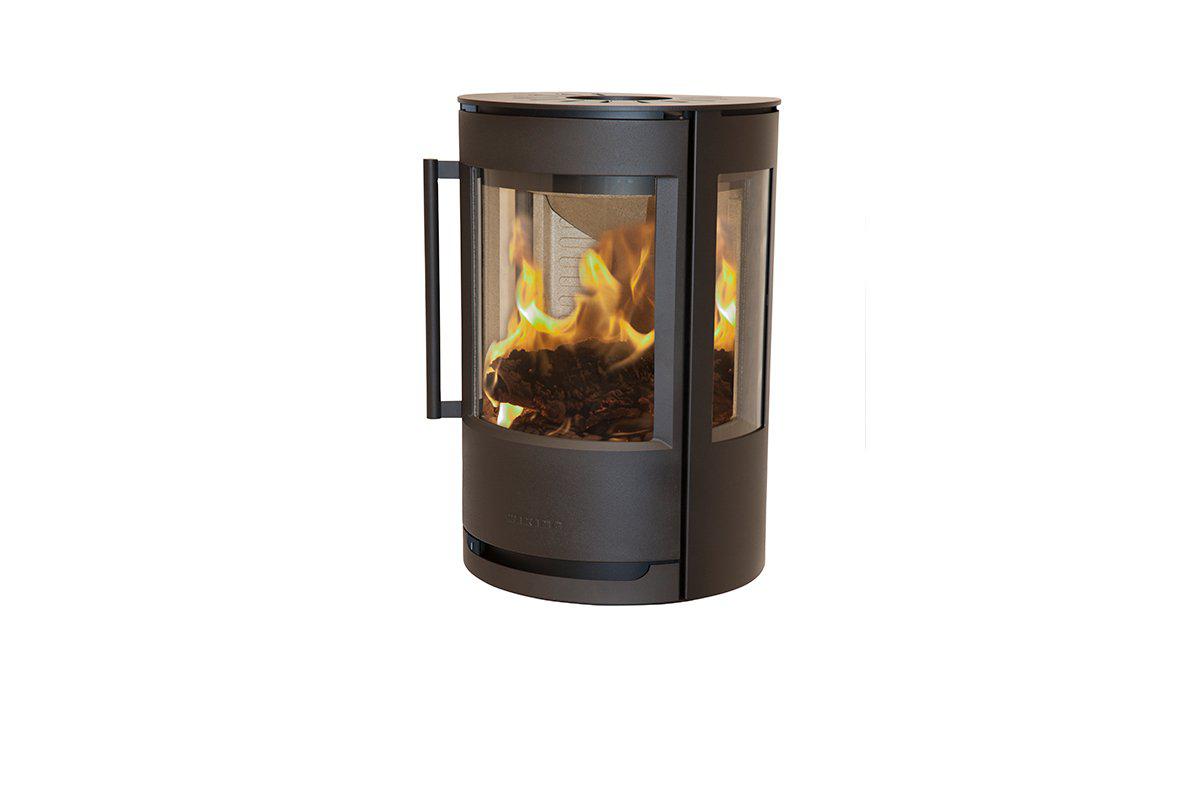

WIKING Luma 1 Wall Mount

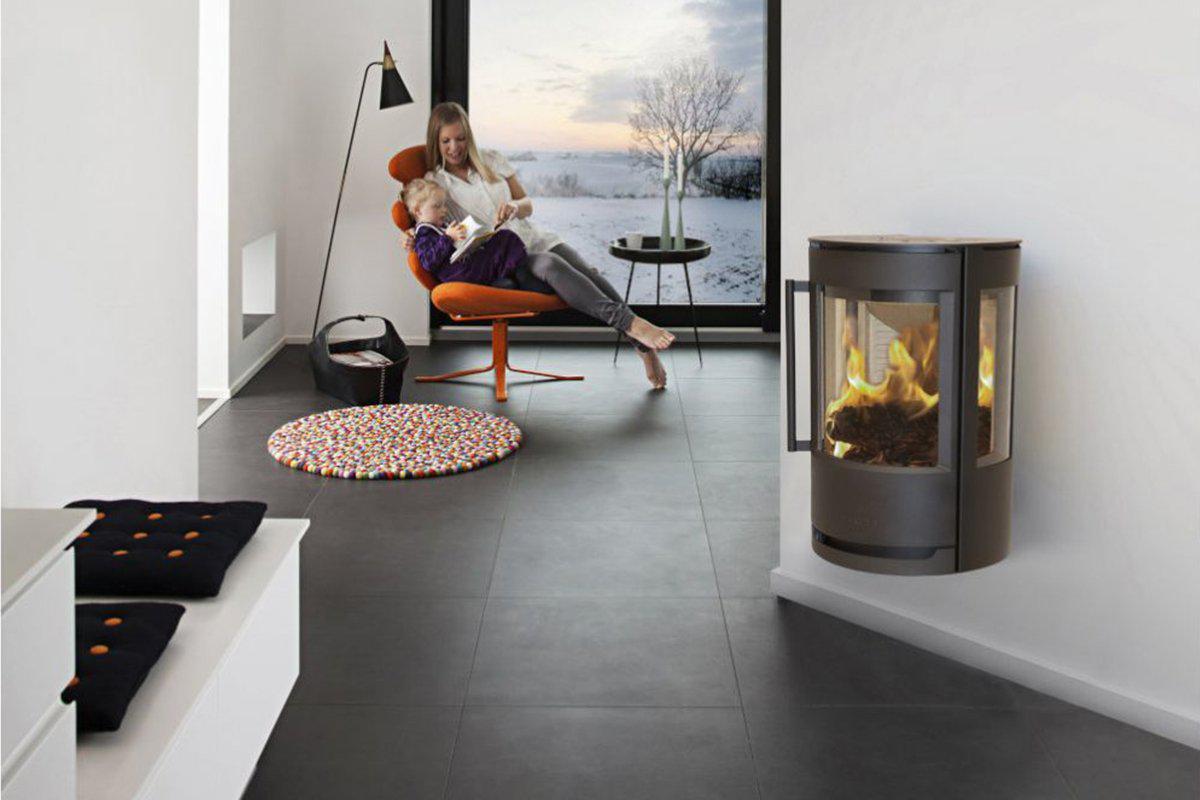

WIKING Luma 1 and 2 are the lowest wall-mounted stoves in the WIKING Luma series. But this does not prevent the firewood from being fully utilised, to the benefit of the user and the environment. Both models have a large stove glass set in a solid castiron door, and Luma 1 also has wide side windows, so you can enjoy the view of crackling flames from all angles. Both WIKING Luma stoves are also available with a pedestal, so they can be installed on the floor.

WIKING Luma 1 and WIKING Luma 2 have a simple and timeles design and are perfect for the cosy nook in your holiday house, or as a gathering point in your lounge room at home.

Technical
Energy efficiency class WIKING®Automatic™

Operating range
4-9 kW
Nominal output
7 kW
Net efficiency
81 %
Flue outlet
Ø 150 mm
Combustion chamber width
36,5 cm
Chimney draught, min
12 Pa
Connection from floor to topoutlet
76,2 cm
Connection from lower edge of stove to topoutlet, wall mounted
76,2 cm
Distance to combustible material

Rear/side
12,5/60 cm
To the floor
28,3 cm
Distance from furniture, front
105 cm
If placed in corner, 45º
31,5 cm
Weight

Weight
117 kg
Approvals
  • EN 13240 (Europe)
  • NS 3058/3059 (Norway)
  • Art. 15a (Austria)
  • RLU/DIBt (Germany)
  • DEFRA (England)
  • HETAS (England)
Options
  • Smoke outlet: top or back
  • Colour: black
  • Combustion air system is available
  • Plinth or wall bracket
