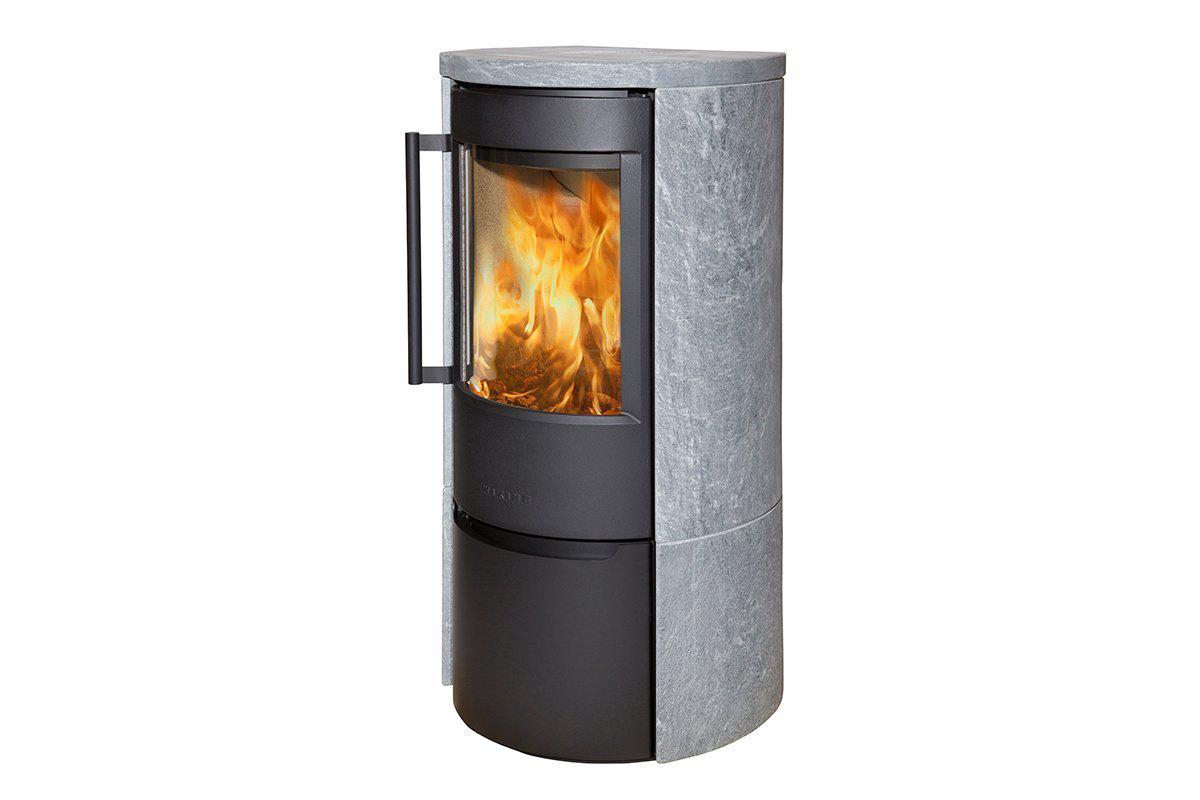

WIKING Luma 4 with soapstone or tiles

WIKING Luma 4 have been developed with large combustion chambers, to meet the large heating needs at home in the lounge room. The models come with solid cast-iron bases and cast-iron doors, uniting simplicity and reliable design. They also have a practical storage area under the combustion chamber.

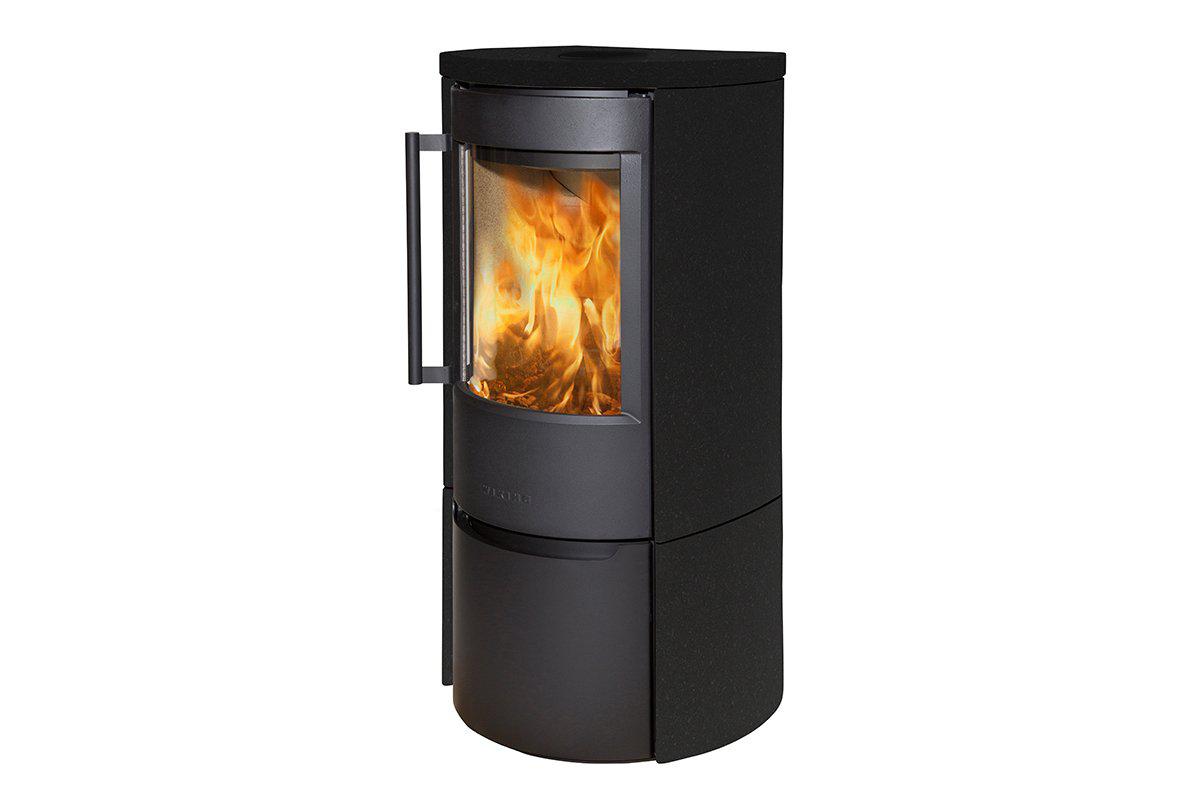

WIKING Luma 3 has wide side windows, so the attractive flames can be viewed from the sides as well. WIKING Luma 4 comes standard with smooth steel sides, but is also available with tiles or soapstone as a decorative and exclusive cladding for the stove.
Technical
Energy efficiency class WIKING®Automatic™ A+

Operating range
4-9 kW
Nominal output
7 kW
Net efficiency
81 %
Flue outlet
Ø 150 mm
Combustion chamber width
36,5 cm
Chimney draught, min
12 Pa
Connection from floor to topoutlet
104,5 cm
Distance to combustible material
Rear/side
15/40 cm
Distance from furniture, front
110 cm
If placed in corner, 45º
7,5 cm
Weight
Weight with soapstone
234 kg
Weight with tile cover
145 kg

Tiles
Approvals
  • EN 13240 (Europe)
  • NS 3058/3059 (Norway)
  • Art. 15a (Austria)
  • RLU/DIBt (Germany)
  • DEFRA (England)
  • HETAS (England)
Options
  • Smoke outlet: top or back
  • Colour: black
  • Combustion air system is available
