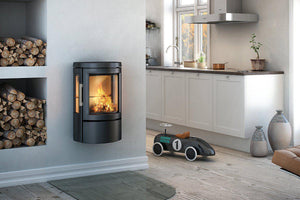

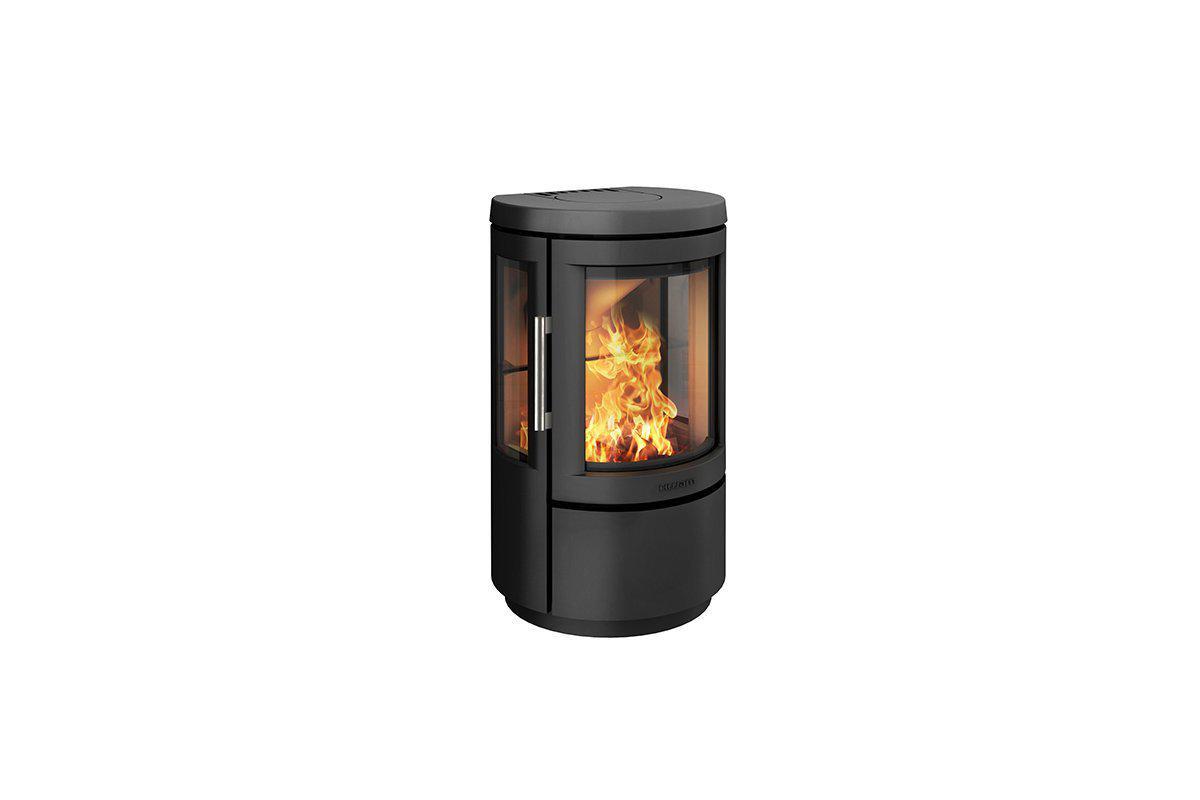

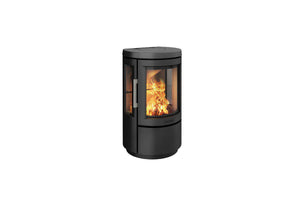

HWAM 2610C WALL MOUNTED

HWAM 2610C WALL MOUNTED

If you're looking for a stylish Defra approved wall mounted stove then take a serious look at the 4.5kW Hwam 2610C Wall Mounted wood burner. This competitively priced convector stove couldn't be any easier to install and has both top or rear flue options as well as direct external air supply capability from the rear. This and its German DIBt tested room seal also makes the Hwam 2610C Wall Mounted a great choice for low energy homes especially those with mechanical ventilation heat recovery systems (MVHR). The Hwam 2610C Wall Mounted has a high efficiency of 80.3% and is A+ rated. With its large area of curved glass set in the fine cast iron door and the two side windows you'll always get a great view of the fire from wherever you are in the room. The powerful 3-Way air wash system, which not only washes pre-heated air from the top but also both sides of the glass, will help to keep it that way too.

The Hwam 2610C Wall Mounted has a very practical tested heat output range starting at around 2.0kW and going up to a maximum of 6.0kW. This is precisely controlled with the the discreet slider control which works in combination with the Hwam AutoPilot and is a very useful standard feature that makes getting the best out of your stove really easy. This is Hwam's tried and tested mechanical device which automatically boosts primary air when lighting the fire, during reloading and at the end of the burn cycle for more efficient and cleaner burning combustion. The sturdy door features Hwam's unique closing mechanism to ensure a secure air tight seal with the minimum of effort every time. A smaller lower steel door which you simply push to open, conceals the ash pan chamber and ash pan for easier removal of the ash when it's needed.

To check out just how well built the Danish made Hwam 2610C is then simply open the fire chamber door with its stylish cool touch handle and see how easy it is to close – listen to the reassuring sound that it makes when it connects with the high grade steel bodywork. While you're at it also take a look at the inside of 2610C's tall fire chamber and compare it to that of virtually any other stove. There's none of the standard basic sheets of vermiculite. Instead what you get is a series of longer lasting, highly compressed and tightly fitting moulded vermiculite panels which have been individually shaped to eliminate inefficient cold corners and prevent leakage to enable the stove to maintain the high temperatures which promote much cleaner burning. Whatever way you look at the Hwam 2610C  Wall Mounted, with its 180º view of the fire, will create a stunning focal point in any small to medium sized living space.

Take a look at the other 2610 wall mounted model – the Hwam 2610M, with its sleek all-over glass fronted door for an even cleaner contemporary look.



Technical

HWAM 2610C WALL MOUNTED KEY FACTS


Brand: HWAM
Model HWAM 2610C WALL MOUNTED
Nominal Heat Output:    nominal 4.5kW
Heat Output Range:   2.0kW to 6.0kW depending on fuel load
Efficiency (Net):   Up to 80.3%
ErP Energy Rating A+
Defra Smoke Exempt:   Yes
Fuel:   Seasoned wood logs (less than 20% moisture content)
Airwash:   3-Way (top and both sides)
Air Controls:

Single slider plus Hwam Autopilot

Construction: Cast iron door and steel bodywork
Flue Outlet:    Top or Rear (top closure plate required for rear fitting)
Flue Diameter 150mm  / 6"
Grate Type Flat bed
Guarantee:    5 Years
Maximum Log Length 250mm / 10" approx
Standard Colour

Matt black

Optional Finishes:   Grey
Options:

Direct external air supply system

Top flue outlet blanking plate (when using rear flue)

Hwam SmartControl

Net Weight:   64.0kg
Air vent required:    Not usually in pre-2008 homes (Subject to Building Regs)
Suitable for 12mm Hearth:   Yes. NB hearth still required
Direct Air Inlet (DEAS):  100mm dia. Base or rear (additional kit required)
Overall Dimensions:  H700  W430  D378 (ex wall bracket)
Minimum Combustible Distances (mm):   Sides 360  Rear 190






Drawings

Stove Body or Wall Hung

Plinth

Pedestal

Downloads

Hwam Brochure UK

User's manual (DK, SE, NO, EN)

Assembly instructions for combustion air system

Installation on a pedestal (HWAM 2610 & 2620)

Mounting the plinth (HWAM 2610 & 2620)

Mounting the stove on a wall (HWAM 2610 & 2620)

Mounting adjustable feet

Lighting Guide (EN)
