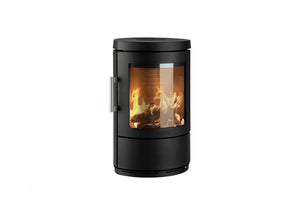

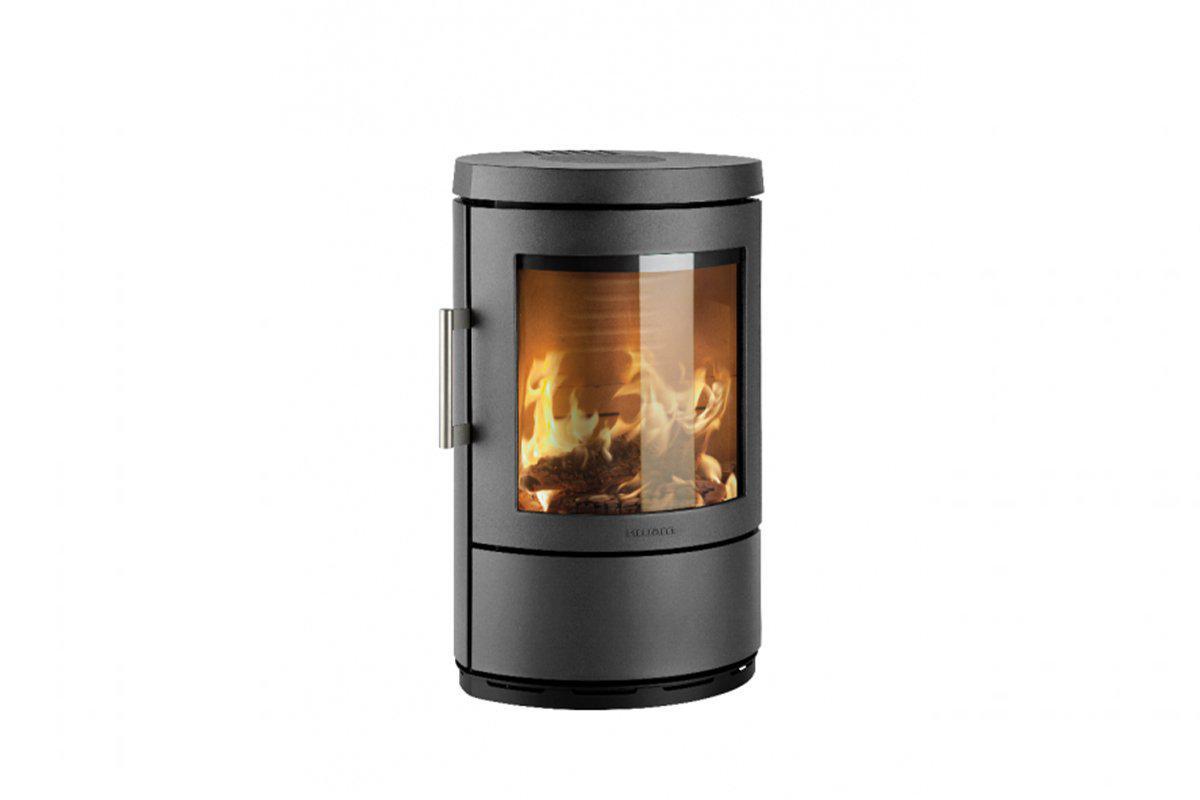

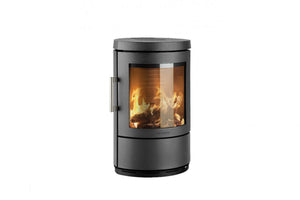

HWAM 3110C Low Plinth

The HWAM series combines modern design with a cosy atmosphere.

The design of this elliptical stove series originates in pure Scandinavian lines and simple forms that make the HWAM 3100 series more than just stoves. They are also attractive items of furniture that will adorn and warm any home. Hung on the wall, it has a discreet expression and is particularly easy to clean.

Options:
HWAM 3110 - Available on a pedestal, plinth or as wall mounted
HWAM 3110c (classic door) - Available in grey orblack steel
HWAM 3110m (modern door) - Available in white, grey or black steel



Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM® Autopilot™ Yes
Capacity (kW) 2-7kW
Nominal heat output (kW) 4,5
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 33
Height (cm) Stove body 75,5
Height (cm) inc low plinth 78,5
Height (cm) inc pedestal 105,5
Width (cm) 47,9
Depth (cm) 41,5
Weight
Weight (kg) 87
Weight (kg) pedestal 14
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 20
Distance to inflammable materials, front(cm) 80
Distance to inflammable materials, corner location (cm) 13-34
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 80
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 78,2/ -
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings

Downloads

Hwam Brochure UK

User's manual for the HWAM 3100 (DK, SE, NO, EN)

User's manual for the HWAM 3100 with HWAM® SmartControl™ (EN, IT)

User Manual HWAM® SmartControl™ Generation 2 (EN)

Assembly Instructions for combustion air system for HWAM 3120 & HWAM 3130

Assembly Instructions for combustion air system for the HWAM 3100-series with HWAM® SmartControl™

Assembly Instructions for combustion air system for HWAM 3110 on a pedestal

Assembly Instructions for combustion air system for HWAM 3110 on a low plinth, wall mounted & and on the floor

Mounting the plinth (HWAM 3110)

Mounting the stove on a wall (HWAM 3110)

Mounting the heat storage (HWAM 3130)

Mounting adjustable feet

Quickguide - HWAM® SmartControl™ (EN)
