HWAM 3130C

The curved glass in the door of the stove invites the family to enjoy the view of the flames from many angles in the room

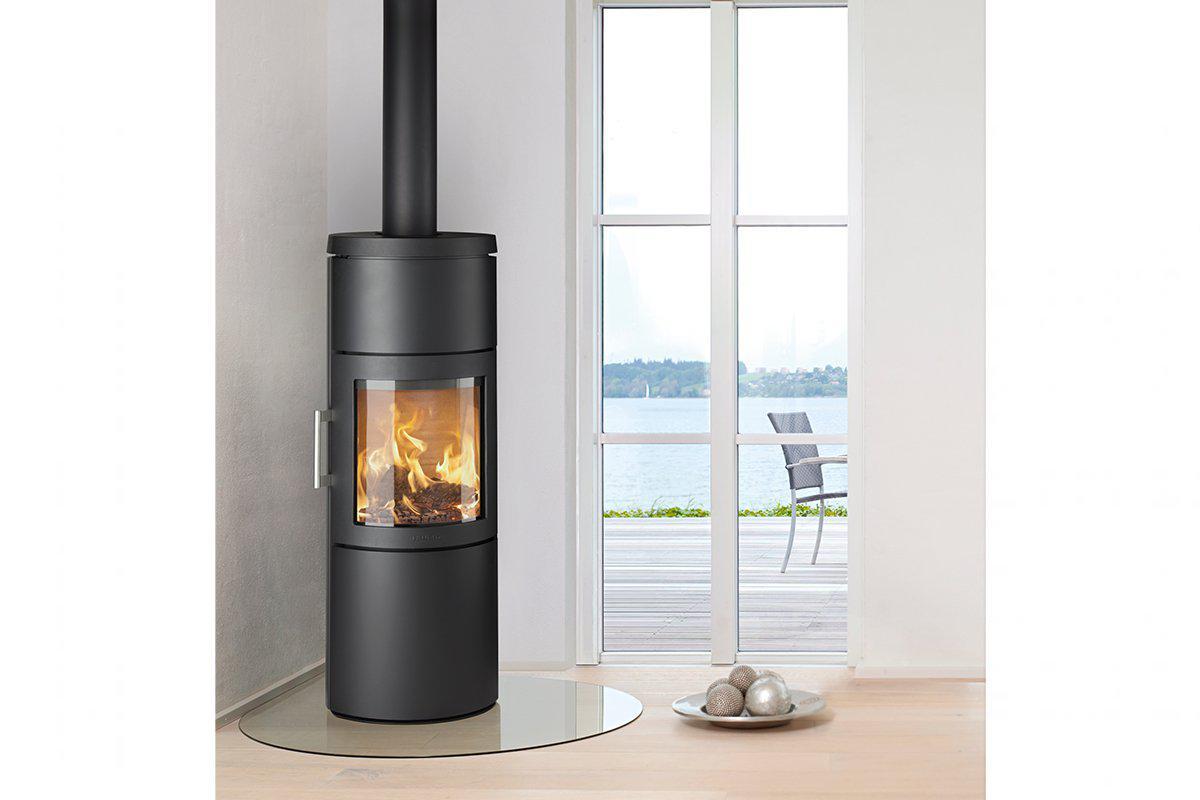

The elliptical shape gives HWAM 3130 an attractive, light expression. Form and finish throughout make it possible to install the stove in a corner, on a straight wall and even in the centre of the room.

Options:

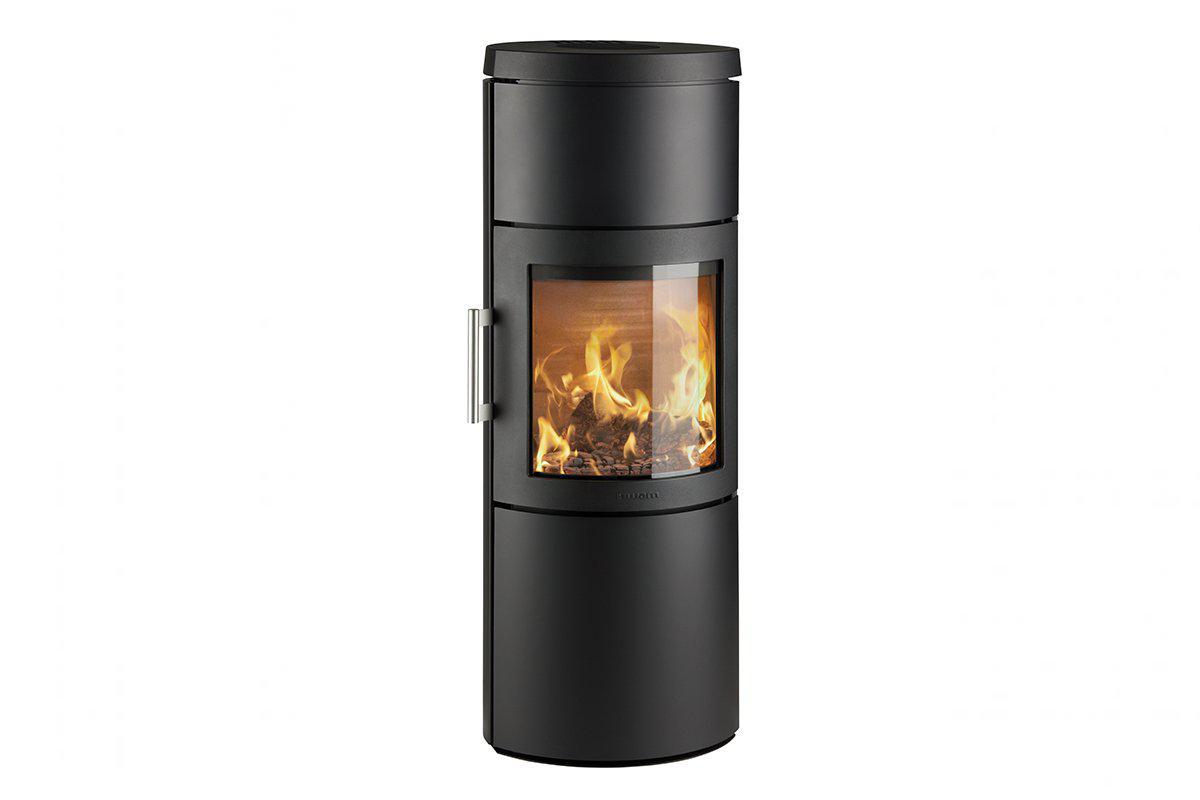

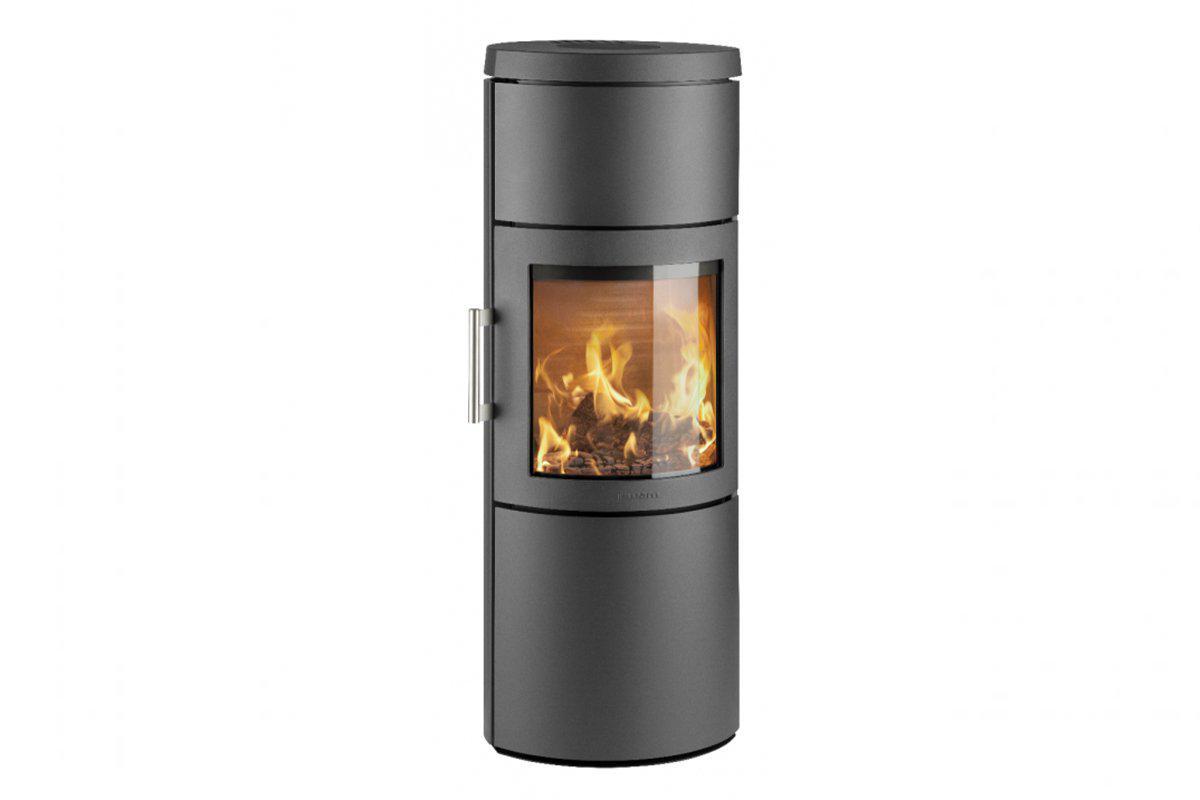

HWAM 3130c (classic door) - Available in grey or black steel
HWAM 3130m (modern door) - Available in white, grey or black steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.



Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM® Autopilot™ Yes
Capacity (kW) 2-7kW
Nominal heat output (kW) 4,5
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 33
Height (cm)
126
Width (cm) 47,9
Depth (cm) 41,5
Weight
Weight (kg) 110
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 20
Distance to inflammable materials, front(cm) 80
Distance to inflammable materials, corner location (cm) 13-34
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 80
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 78,2/ 83,4
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
BImSchV Stufe 2 (Germany) Yes
RLU zugelassen (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings

Downloads

Hwam Brochure UK

User's manual for the HWAM 3100 (DK, SE, NO, EN)

User's manual for the HWAM 3100 with HWAM® SmartControl™ (EN, IT)

User Manual HWAM® SmartControl™ Generation 2 (EN)

Assembly Instructions for combustion air system for HWAM 3120 & HWAM 3130

Assembly Instructions for combustion air system for the HWAM 3100-series with HWAM® SmartControl™

Assembly Instructions for combustion air system for HWAM 3110 on a pedestal

Assembly Instructions for combustion air system for HWAM 3110 on a low plinth, wall mounted & and on the floor

Mounting the plinth (HWAM 3110)

Mounting the stove on a wall (HWAM 3110)

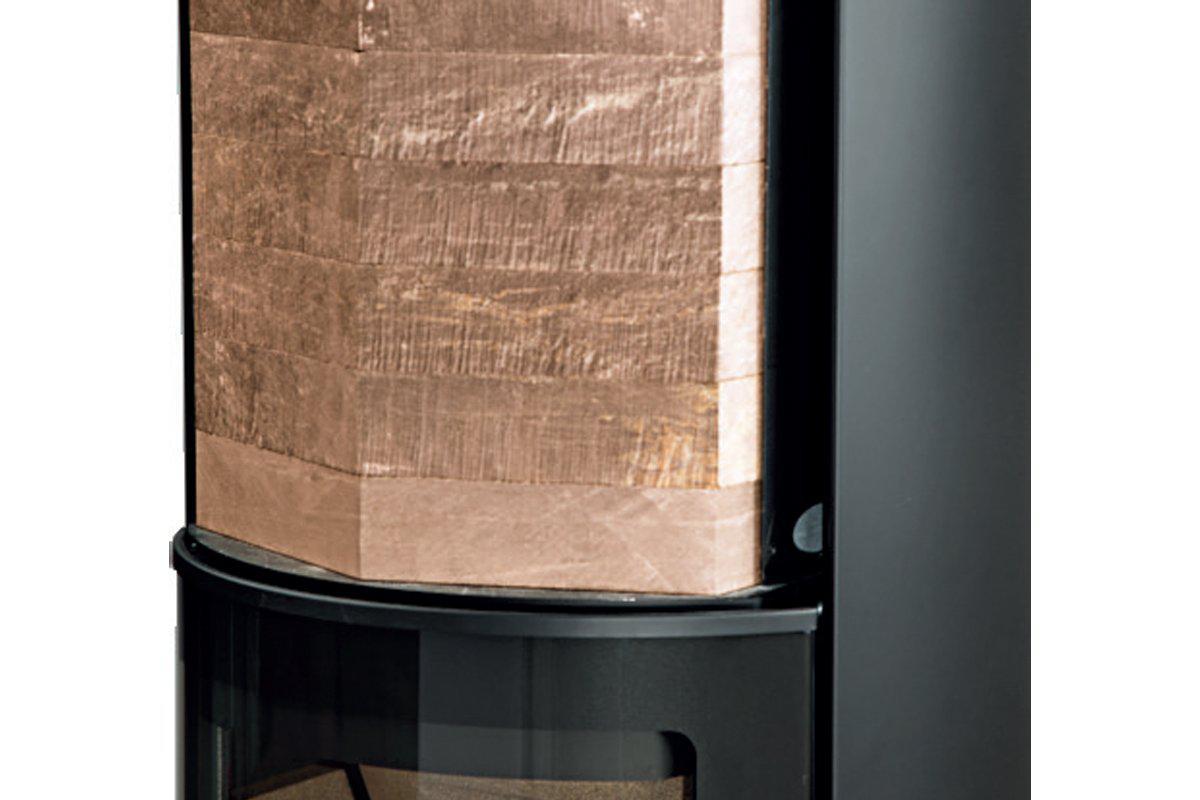

Mounting the heat storage (HWAM 3130)

Mounting adjustable feet

Quickguide - HWAM® SmartControl™ (EN)
