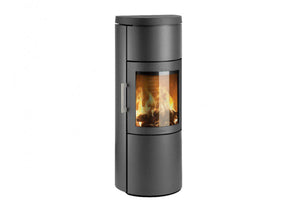

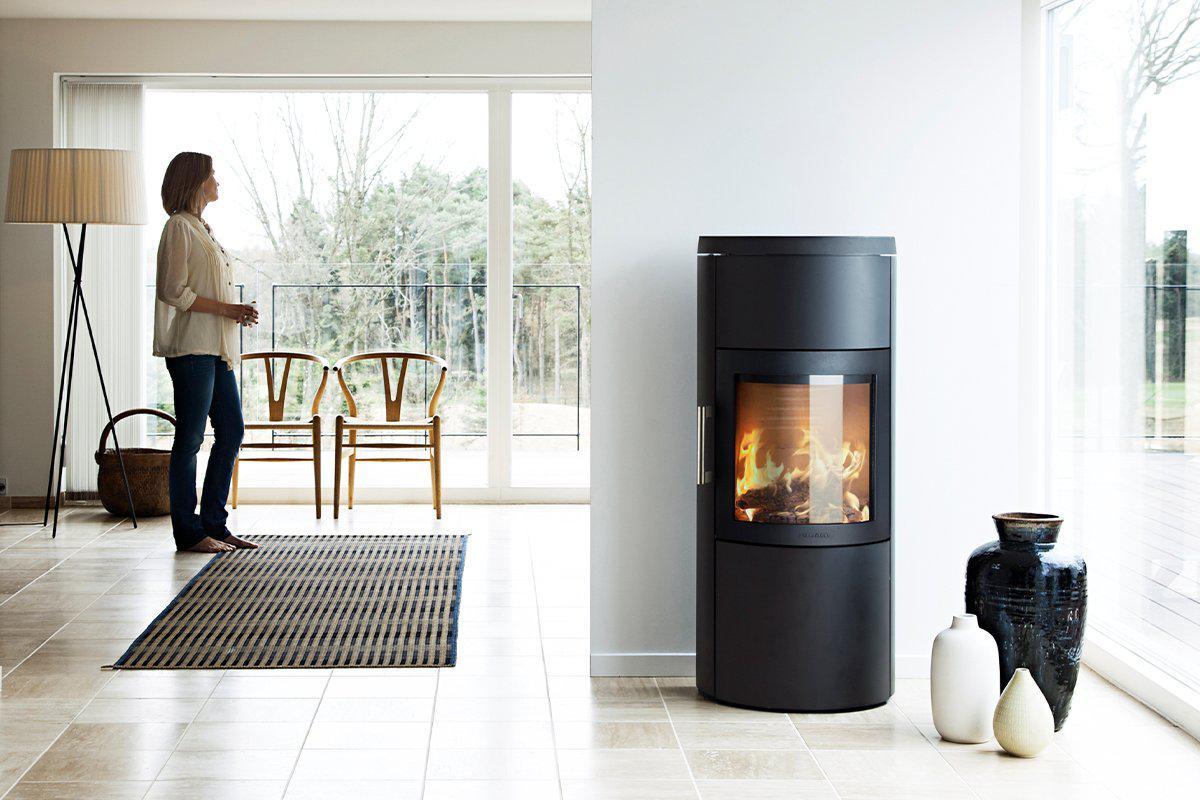

Hwam 3520 4.5kW Wood Burning Stove

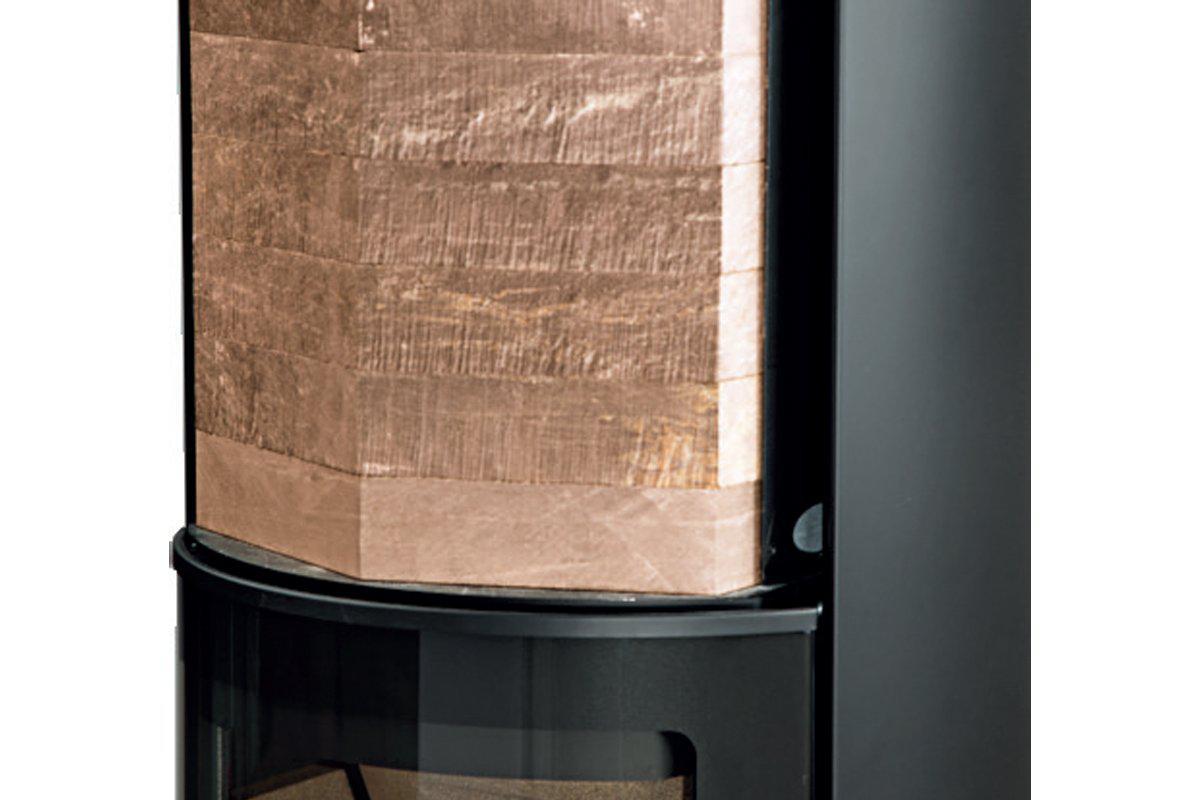

The Hwam 3520 is a tall (1260mm) contemporary styled stove with a semi-circular footprint which has a depth of just 371mm. It has two compartments with the top compartment designed to hold an optional 44kg of heat storage stones. For an additional 49kg heat storage the 3520 can also be specified with stone side panel sets, including top, in five different colour variants – Grey Soapstone, Tobacco, Nox Petra or Rosewood Sandstone or San Sebastian Limestone.
The 3520 is Ecodesign Ready, Defra approved and its room-seal has passed the tough German DIBt test, which along with its direct external air supply option, ensures that it is safe to install where there is mechanical ventilation heat recovery (MVHR). The practical 2.0kW to 7kW (nominal 4.5kW) heat output range is controlled and managed with Hwam's Autopilot system with an option to upgrade to the state-of-the-art SmartControl which will improve the stove's efficiency by a further 5.3% as well as save up to 50% on fuel usage.
Options

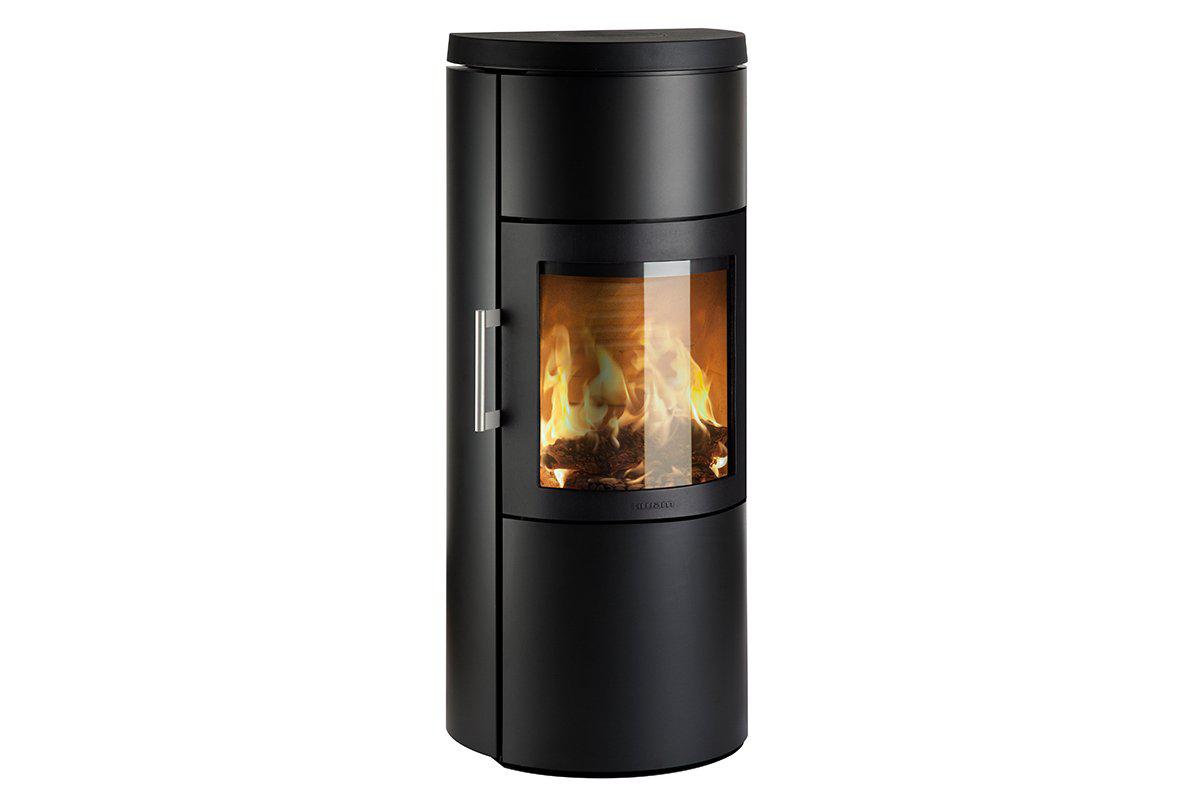

HWAM 3520c (classic door) - Available in grey orblack steel
HWAM 3520m (modern door) - Available in white, grey orblack steel

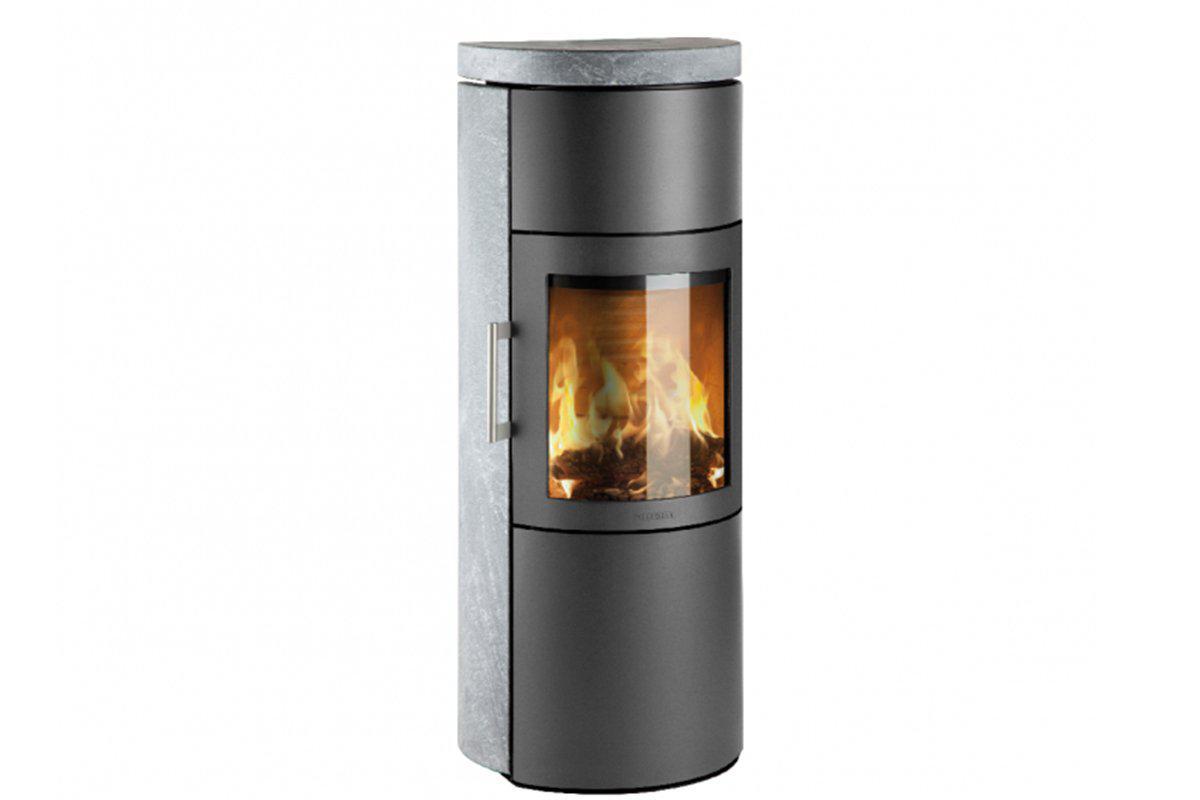

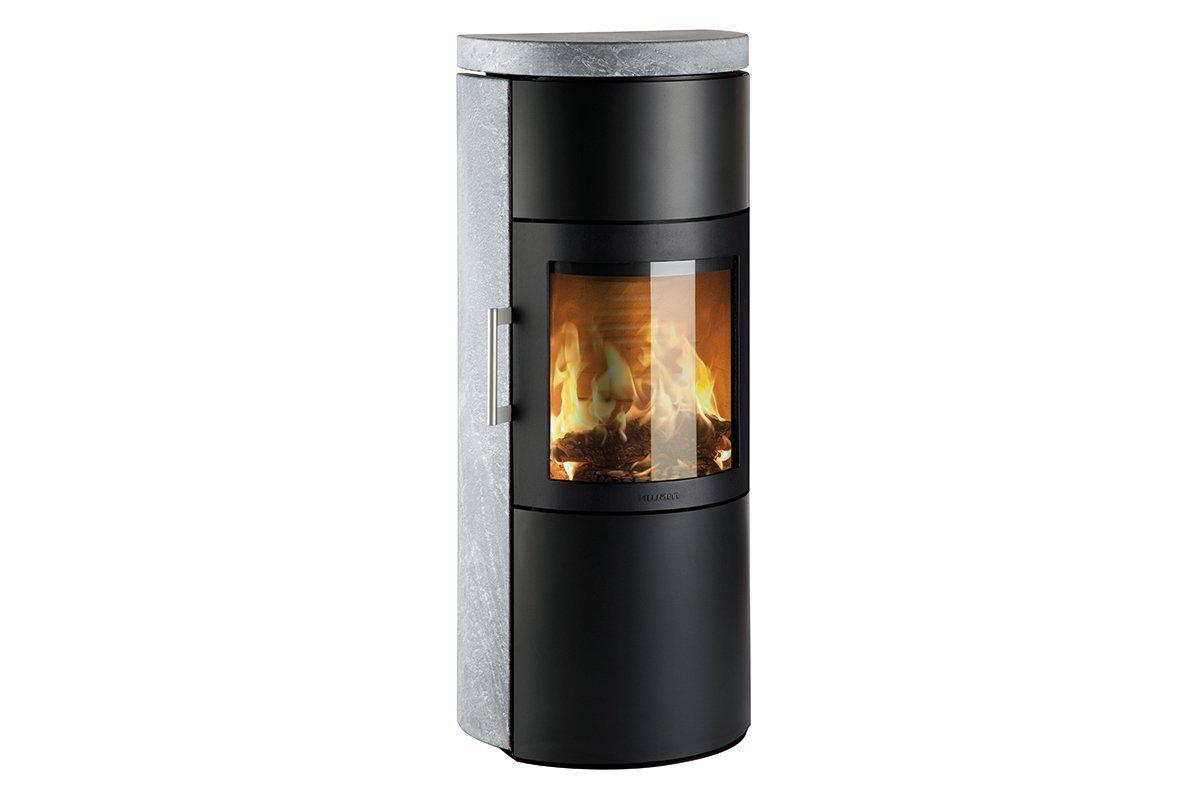

HWAM 3520c - Available with soapstone, sandstone - black or grey steel
HWAM 3520m - Available with soapstone, sandstone - black or grey steel
HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.
| Technical data | |
| Energy efficiency class HWAM®Autopilot™ | A |
| HWAM®SmartControl™ | A+ |
| HWAM® Autopilot™ | Yes |
| HWAM® Smartcontrol™ | Yes |
| Capacity (kW) | 2-7kW |
| Nominal heat output (kW) | 4,5 |
| Smokeoutlet, Ø (mm) | 150 |
| Chimney draught, recommended (Pa) | 12 |
| Combustion chamber width (cm) | 33 |
| Height (cm) Stove body | 125,8 |
| Width (cm) | 54 |
| Depth (cm) | 37,1 |
| Weight | |
| Weight (kg) | 118 |
| Weight (kg) Heat Retaining Stones | 44 |
| Combustion air system | |
| Combustion air system can be mounted, back (Ø 100 mm) | Yes |
| Combustion air system can be mounted, floor (Ø 100 mm) | Yes |
| Distance to inflammable materials | |
| Distance to inflammable materials, back (cm) | 10 |
| Distance to inflammable materials, side(cm) | 20 |
| Distance to inflammable materials, front(cm) | 80 |
| Distance to inflammable materials, corner location (cm) | 13-43 |
| All dimensions in connection with corner installation are only recommendations. | |
| Distance to furnishing in front (cm) | 80 |
| Efficiency, HWAM®Autopilot™/HWAM® SmartControl™ | |
| Efficiency, gross/net (%) | 78,1/83,4 |
| Approvals | |
| EN 13240 (Europa) | Yes |
| Art. 15a (Austria) | Yes |
| NS 3058/3059 (Norway) | Yes |
| The stove announcement (Denmark) | Yes |
| LRV (Switzerland) | Yes |
| RLU zugelassen (Germany) | Yes |
| BImSchV Stufe 2 (Germany) | Yes |
| Exempt under the Clean Air Act (UK) | Yes |
| HETAS registrated (UK) | Yes |
User's manual for the HWAM 3400 & 3500 series (EN)
User Manual HWAM® SmartControl™ Generation 2 (EN)
Assembly instructions for combustion air system back
Assembly instructions for combustion air system bottom
Assembly instructions for combustion air system for stoves with HWAM® SmartControl™
Mounting of stone cover (HWAM 3520)
Mounting the heat storage (HWAM 3520 & 3530)
Mounting of stone cover (HWAM 3530)
Quickguide - HWAM® SmartControl™ (EN)
