Ecofriendly stove with a harmonious, well-proportioned expression

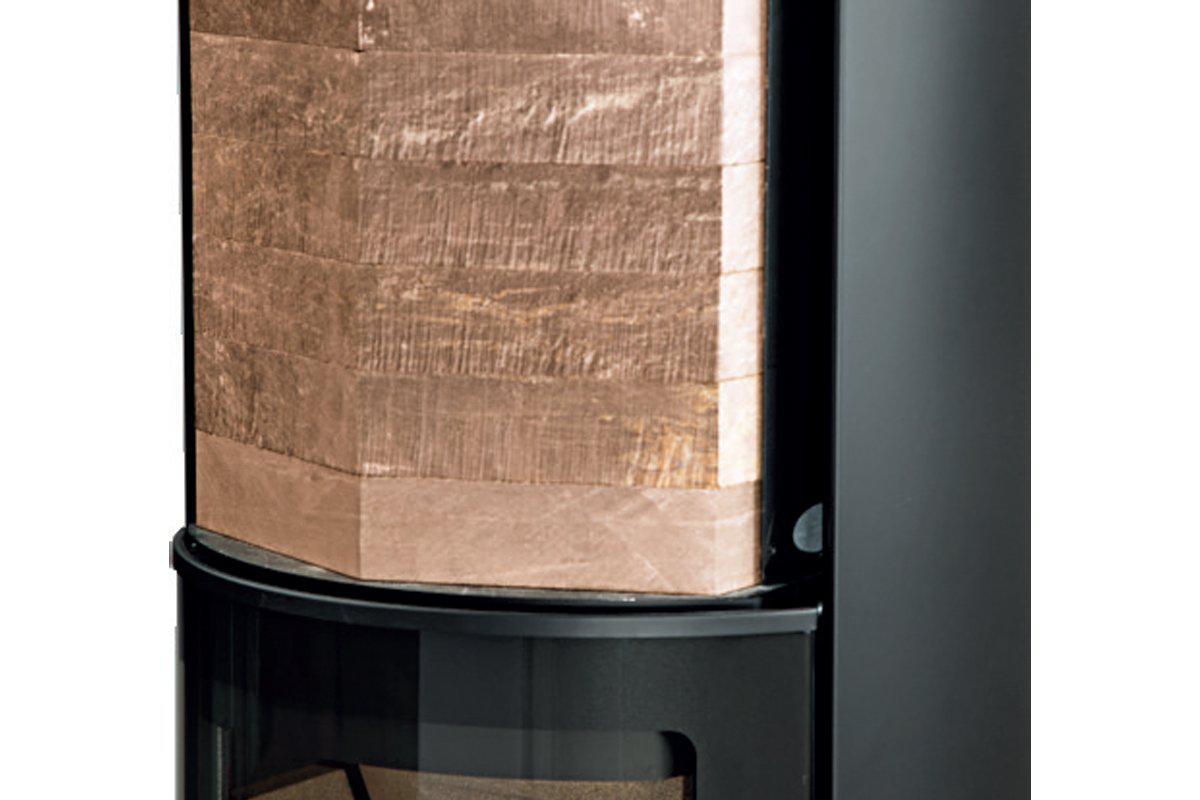

With the perfect proportions and many design options HWAM 3520c is a functional stove with a wealth of practical details. Behind the attractive exterior there is a handy storage space at the bottom and, at the top, a heat storage compartment that can be filled with heat-retaining stone. The HWAM 3500 series are ecofriendly stoves with very low particle emission and high efficiency.
Options
HWAM 3520c (classic door) - Available in grey orblack steel

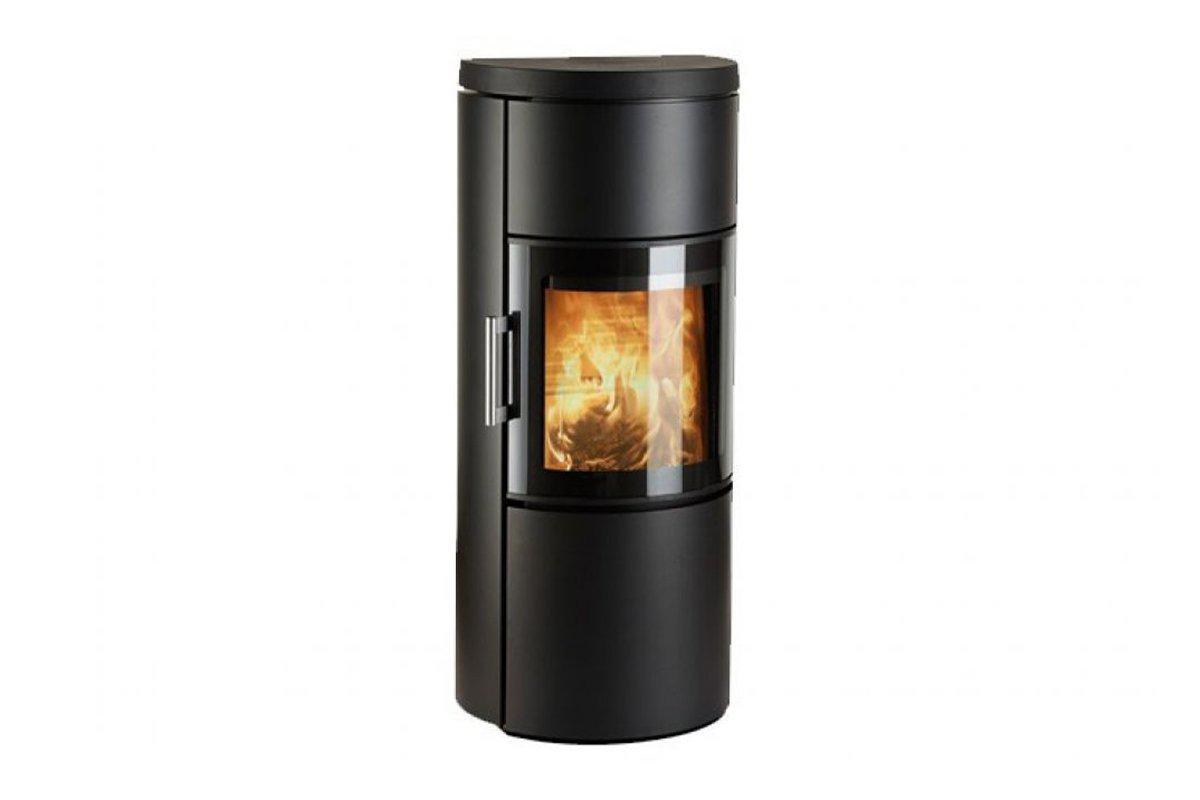

HWAM 3520m (modern door) - Available in white, grey orblack steel

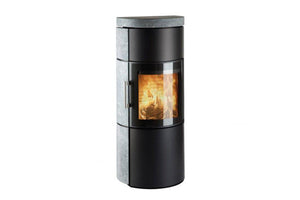

HWAM 3520c - Available with soapstone, sandstone - black or grey steel
HWAM 3520m - Available with soapstone, sandstone - black or grey steel
HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.
Technical data | |
Energy efficiency class HWAM®Autopilot™ | A |
HWAM®SmartControl™ | A+ |
HWAM® Autopilot™ | Yes |
HWAM® Smartcontrol™ | Yes |
Capacity (kW) | 2-7kW |
Nominal heat output (kW) | 4,5 |
Smokeoutlet, Ø (mm) | 150 |
Chimney draught, recommended (Pa) | 12 |
Combustion chamber width (cm) | 33 |
Height (cm) Stove body | 125,8 |
Width (cm) | 54 |
Depth (cm) | 37,1 |
Weight | |
Weight (kg) | 118 |
Weight (kg) Heat Retaining Stones | 44 |
Combustion air system | |
Combustion air system can be mounted, back (Ø 100 mm) | Yes |
Combustion air system can be mounted, floor (Ø 100 mm) | Yes |
Distance to inflammable materials | |
Distance to inflammable materials, back (cm) | 10 |
Distance to inflammable materials, side(cm) | 20 |
Distance to inflammable materials, front(cm) | 80 |
Distance to inflammable materials, corner location (cm) | 13-43 |
All dimensions in connection with corner installation are only recommendations. | |
Distance to furnishing in front (cm) | 80 |
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™ | |
Efficiency, gross/net (%) | 78,1/83,4 |
Approvals | |
EN 13240 (Europa) | Yes |
Art. 15a (Austria) | Yes |
NS 3058/3059 (Norway) | Yes |
The stove announcement (Denmark) | Yes |
LRV (Switzerland) | Yes |
RLU zugelassen (Germany) | Yes |
BImSchV Stufe 2 (Germany) | Yes |
Exempt under the Clean Air Act (UK) | Yes |
HETAS registrated (UK) | Yes |
