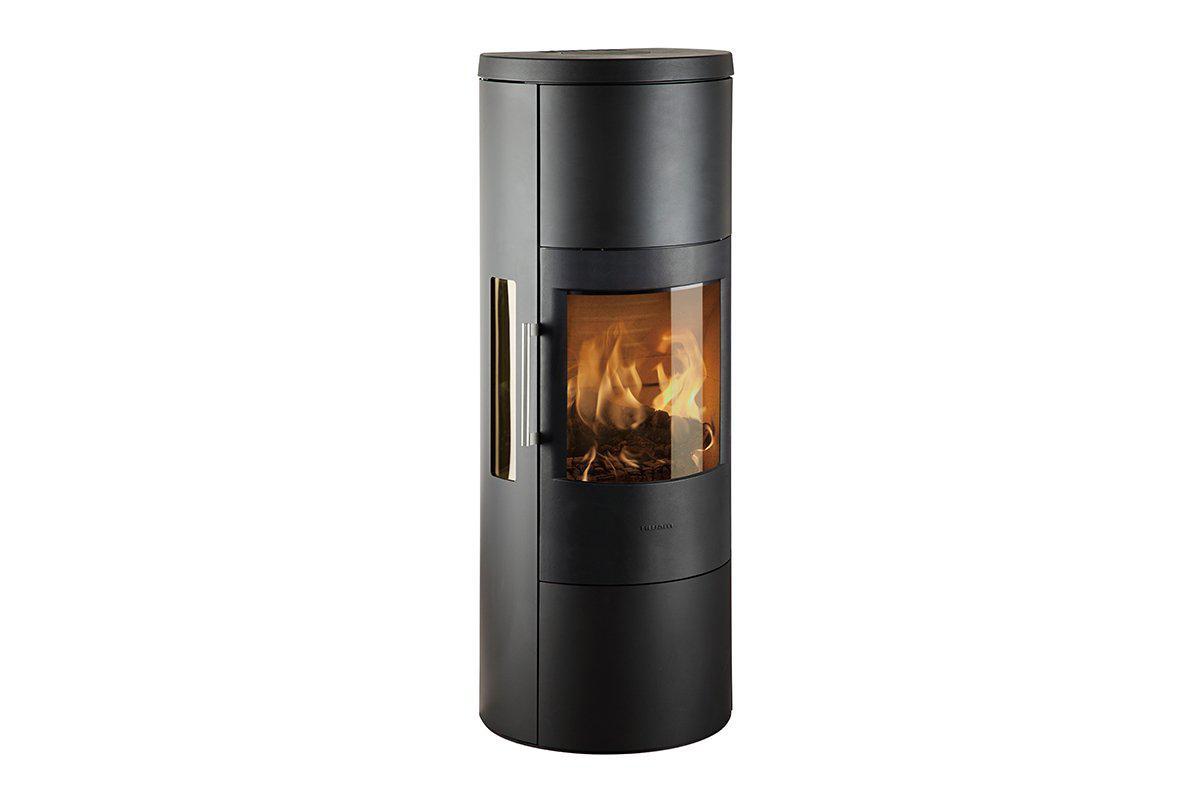

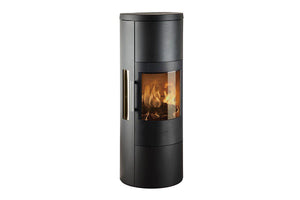

HWAM 3650C

The minimalist exterior of this stove conceals advanced technology, a firewood box and a heat storage compartment

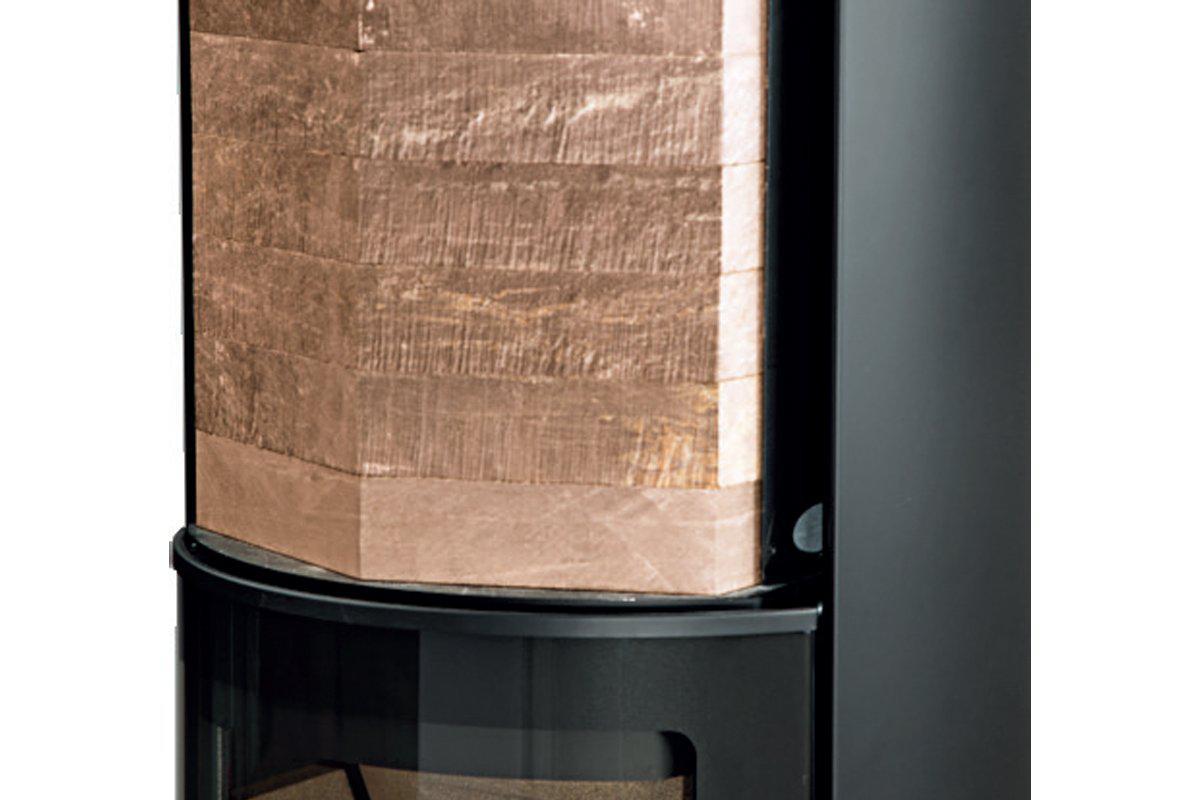

HWAM 3650 is an ecofriendly and tall wood-burning stove with a concealed wood section and heat storage compartment. By placing stone in the compartment, the heat will be stored and gradually emitted for several hours.

Options:
HWAM 3650m (modern door) - Available in white, grey and black steel
HWAM 3650c (classic door) - Available in grey or black steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-9kW
Nominal heat output (kW) 6,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 11/12
Combustion chamber width (cm) 35
Height (cm) Stove body 150,8
Width (cm) 55,6
Depth (cm) 44,2
Weight
Weight (kg) 171
Heat-retaining stones (kg) 55
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 40
Distance to inflammable materials, front(cm) 90
Distance to inflammable materials, corner location (cm)
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 90
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 78,3/80,7
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings

Downloads

Hwam Brochure UKUser's manual for the HWAM 3600 series (DK, SE, NO, EN)
