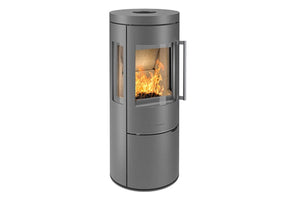

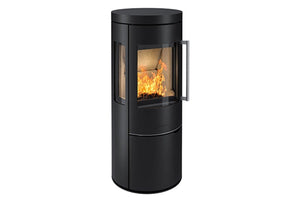

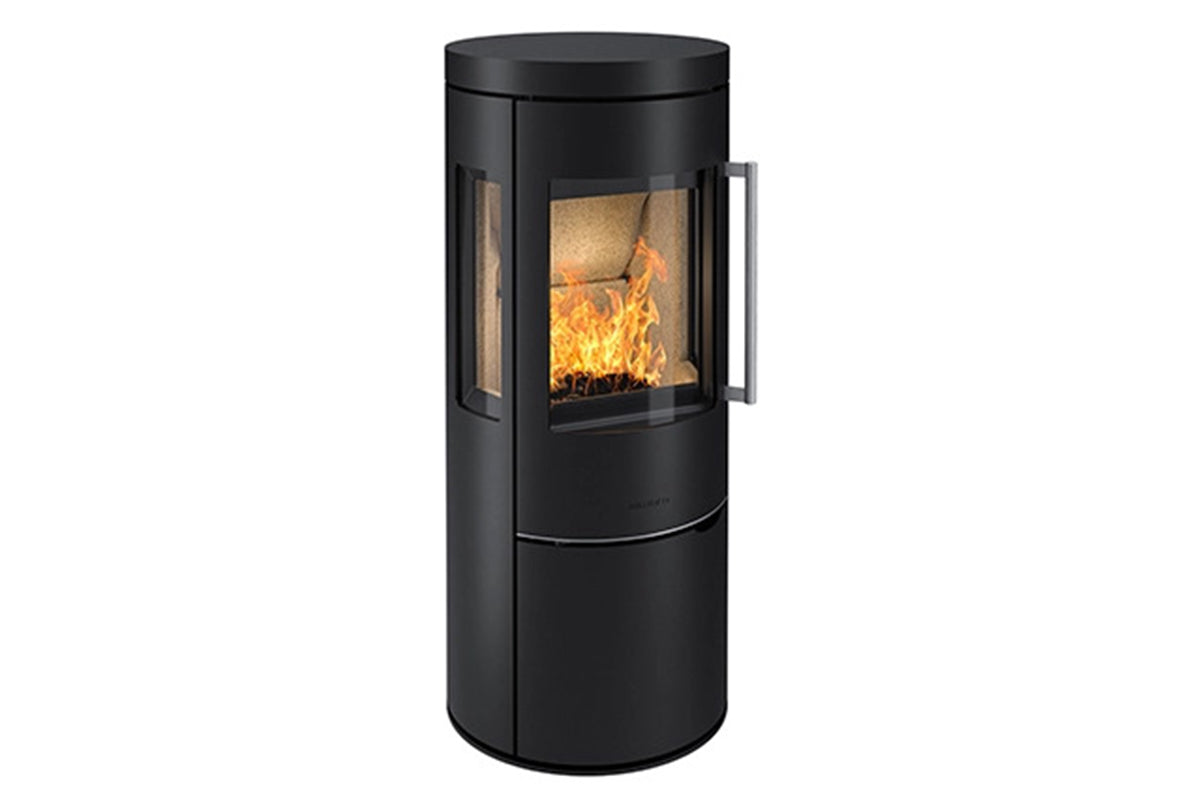

HWAM 4130

HWAM 4100 Slender and Cylindrical

Design by Heiko Heybey

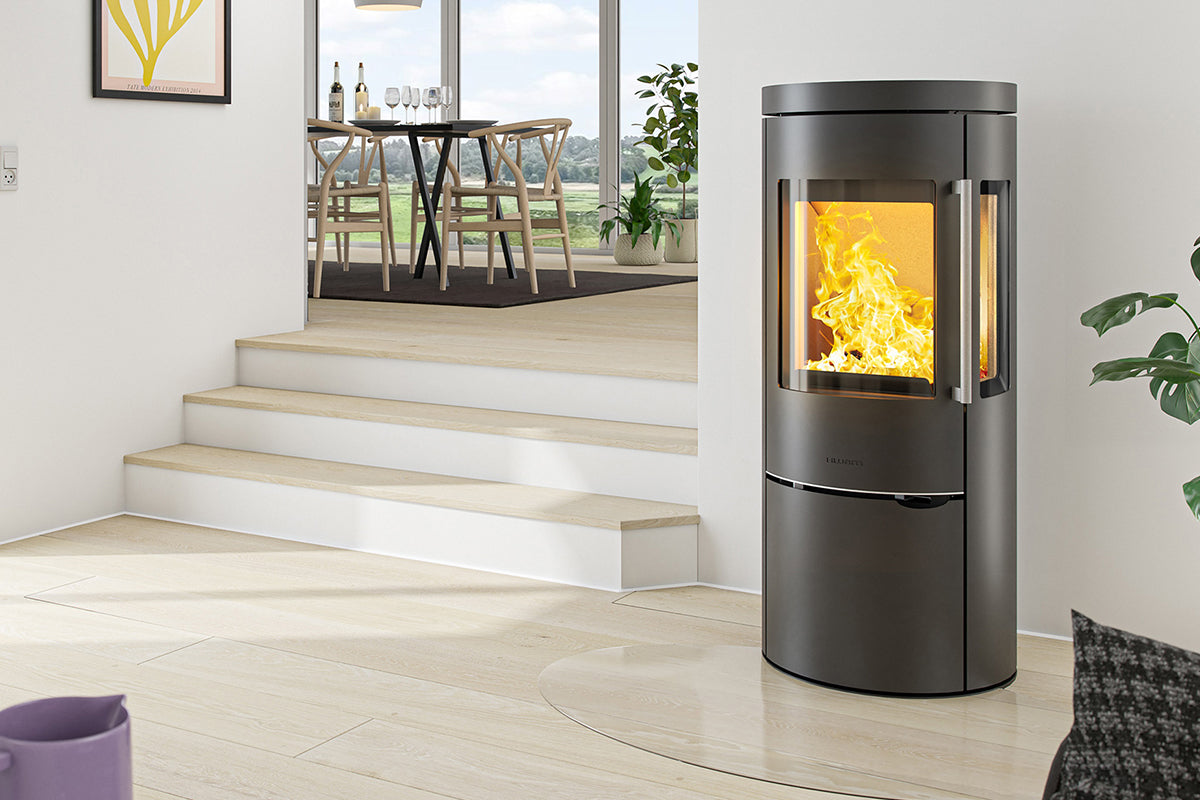

The HWAM 4100-series was inspired by the most complete of all forms: the circle. By choice, the design is as pure as possible, as evidenced by the simple joints and the slim handle. A solid top plate gives the stove its finishing touch. The cylindrical shape of the wood-burning stove fits well into a corner or up against a straight wall.


Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 2-7kW
Nominal heat output Autopilot™/SmartControl™ (kW) 4,7 / 4.9
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 28.4 -35,8
Height (cm) Stove body 119,3
Width (cm) 51,0
Depth (cm) 51,0
Weight
Weight 4130 (kg) 158
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 42
Distance to inflammable materials, front(cm) 90
Distance to inflammable materials, corner location (cm) 10
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 90
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 82 / 86
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings





Downloads

 Hwam Brochure UK

User´s manual for HWAM 4100 & 4200 with HWAM® Autopilot™ (UK, NI)
