The historic campfire has become modern and environmentally friendly
Options:

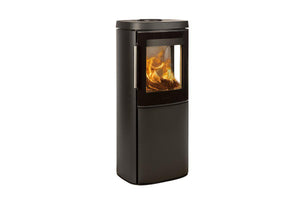

HWAM 4540m (modern door) - Available in white, grey or black steel
HWAM 4540c (classic door) - Available in grey or balck steel
HWAM 4540m (modern door) - Available sandstone or soapstone cover - grey or black steel
HWAM 4540c (classic door) - Available sandstone or soapstone cover - grey or black steel
HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.
Technical data | |
Energy efficiency class HWAM®Autopilot™ | A+ |
HWAM®SmartControl™ | A+ |
HWAM® Autopilot™ | Yes |
HWAM® Smartcontrol™ | Yes |
Capacity (kW) | 3-7kW |
AutomaticTM nominal heat output (kW) | 4,9 |
IHSTM nominal heat output (kW) | 4,9 |
Smokeoutlet, Ø (mm) | 150 |
Chimney draught, recommended (Pa) | 12 |
Combustion chamber width (cm) | 35,8 |
Height (cm) Stove body | 114,3 |
Width (cm) | 50,0 |
Depth (cm) | 40,6 |
Weight | |
Weight (kg) | 124 |
Combustion air system | |
Combustion air system can be mounted, back (Ø 100 mm) | Yes |
Combustion air system can be mounted, floor (Ø 100 mm) | Yes |
Distance to inflammable materials | |
Distance to inflammable materials, back (cm) | 10 |
Distance to inflammable materials, side(cm) | 59 |
Distance to inflammable materials, front(cm) | 120 |
Distance to inflammable materials, corner location (cm) | |
All dimensions in connection with corner installation are only recommendations. | |
Distance to furnishing in front (cm) | 120 |
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™ | |
Efficiency, gross/net (%) | 81,6 |
Approvals | |
EN 13240 (Europa) | Yes |
Art. 15a (Austria) | Yes |
NS 3058/3059 (Norway) | Yes |
The stove announcement (Denmark) | Yes |
LRV (Switzerland) | Yes |
RLU zugelassen (Germany) | Yes |
BImSchV Stufe 2 (Germany) | Yes |
Exempt under the Clean Air Act (UK) | Yes |
HETAS registrated (UK) | Yes |
User's manual for the HWAM 4500 series (EN)
User's manual for the HWAM 4500 series with HWAM® SmartControl™ (EN)
User Manual HWAM® SmartControl™ Generation 2 (EN)
Assembly instructions for combustion air system bottom (HWAM 4510 & 4520)
Assembly instructions for combustion air system back (HWAM 4510 & 4520)
Assembly instructions for combustion air system (HWAM 4530, 4540, 4550 & 4560)
Mounting the stove on a wall (HWAM 4510 & 4520)
Mounting the heat storage (HWAM 4550 & 4560)
