HWAM 4660C

An impressive Defra approved woodburner that delivers everything that you could possibly want from a contemporary stove with a medium-sized heat output.

The Hwam 4660's large physical presence (it's 1388mm high) and stunning good looks, with choice of five different stone coverings, will create a wonderful focal point in any living space. It also scores top marks for performance and practicality. It has a DIBt tested 100% room seal as well as optional direct external air supply capability making it the perfect heating solution for a large living space in a low energy home, especially one with MVHR.

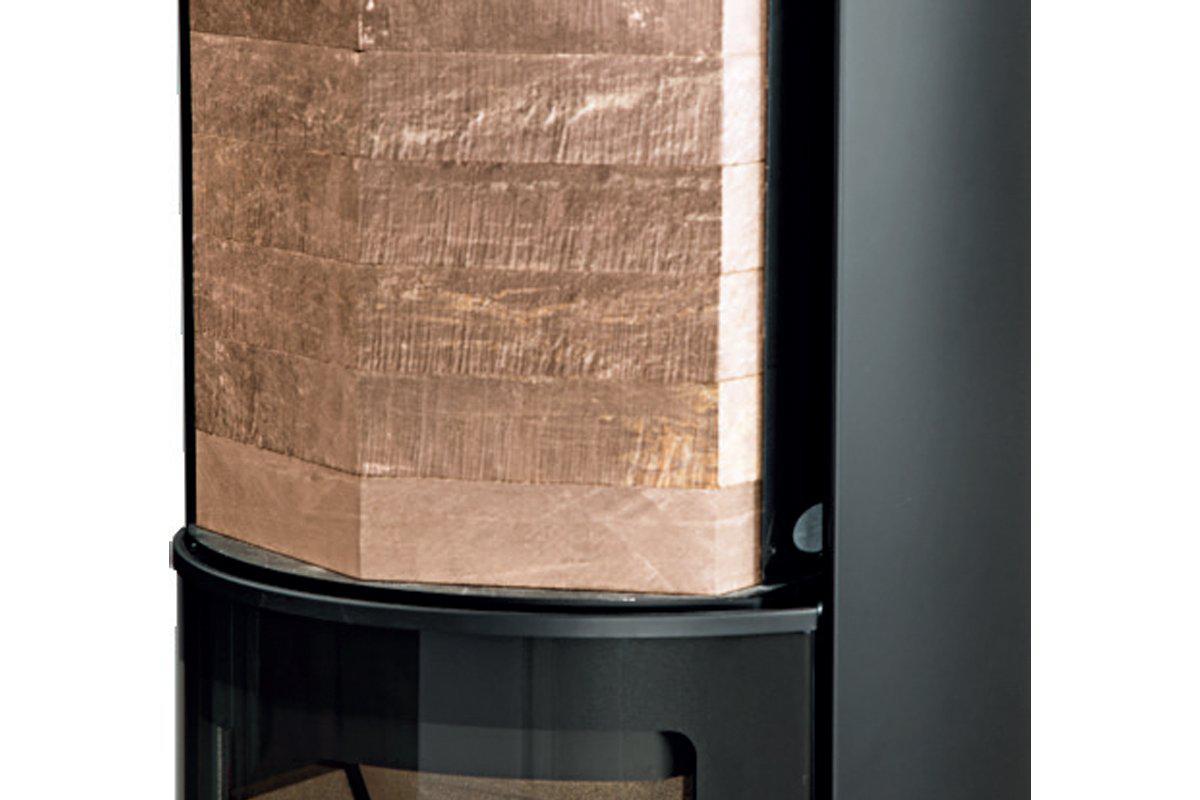

The optional stone covers (all 71kg of them for the Soapstone option) and concealed heat storage stones (a further 45kg) provide gentle heat release for hours after the fire has gone out to maintain a comfortable ambient room temperature for hours. Hwam's Autopilot combustion air control system is standard and can be upgraded to the full SmartControl management for a little extra which not only maximises efficient burning but can also save you up to 50% on fuel usage.

Options
HWAM 4660M (with Modern Door)

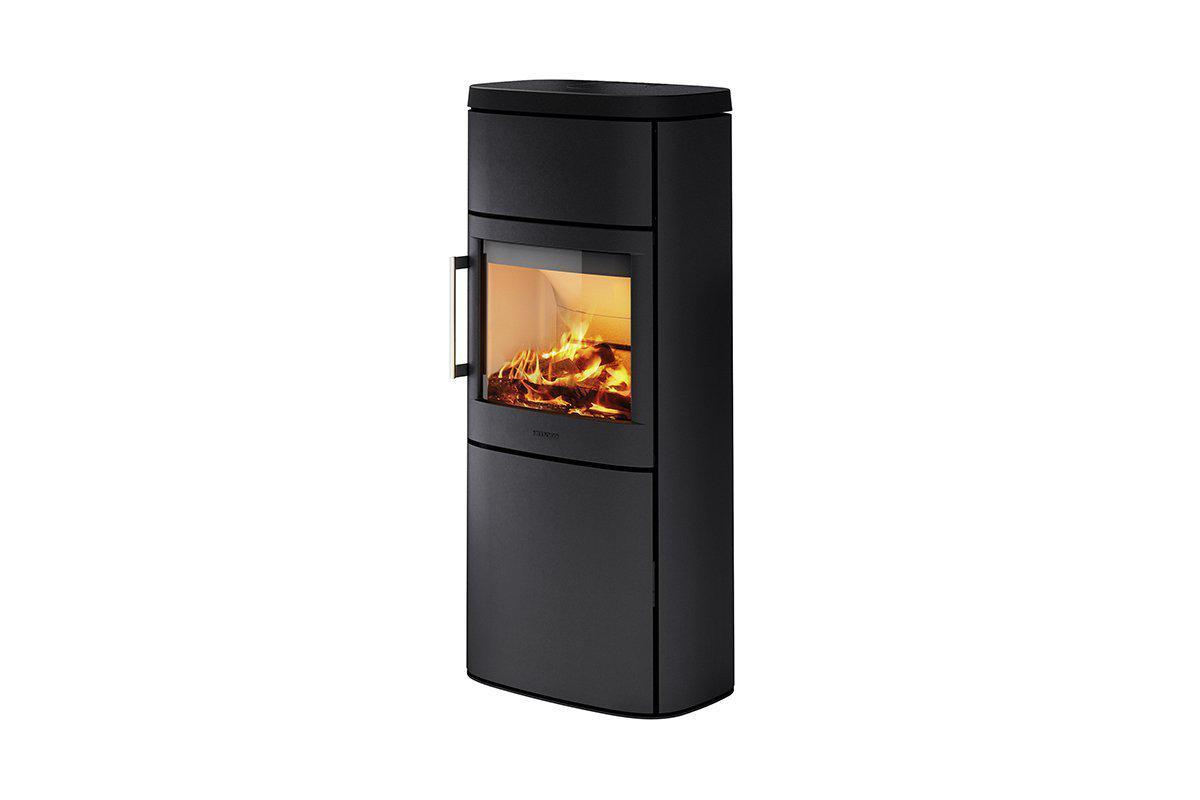

Available in white, grey or black steel
HWAM 4660C (with Classic Door)
Available in white, grey or black steel
HWAM 4660C (with Classic Door)

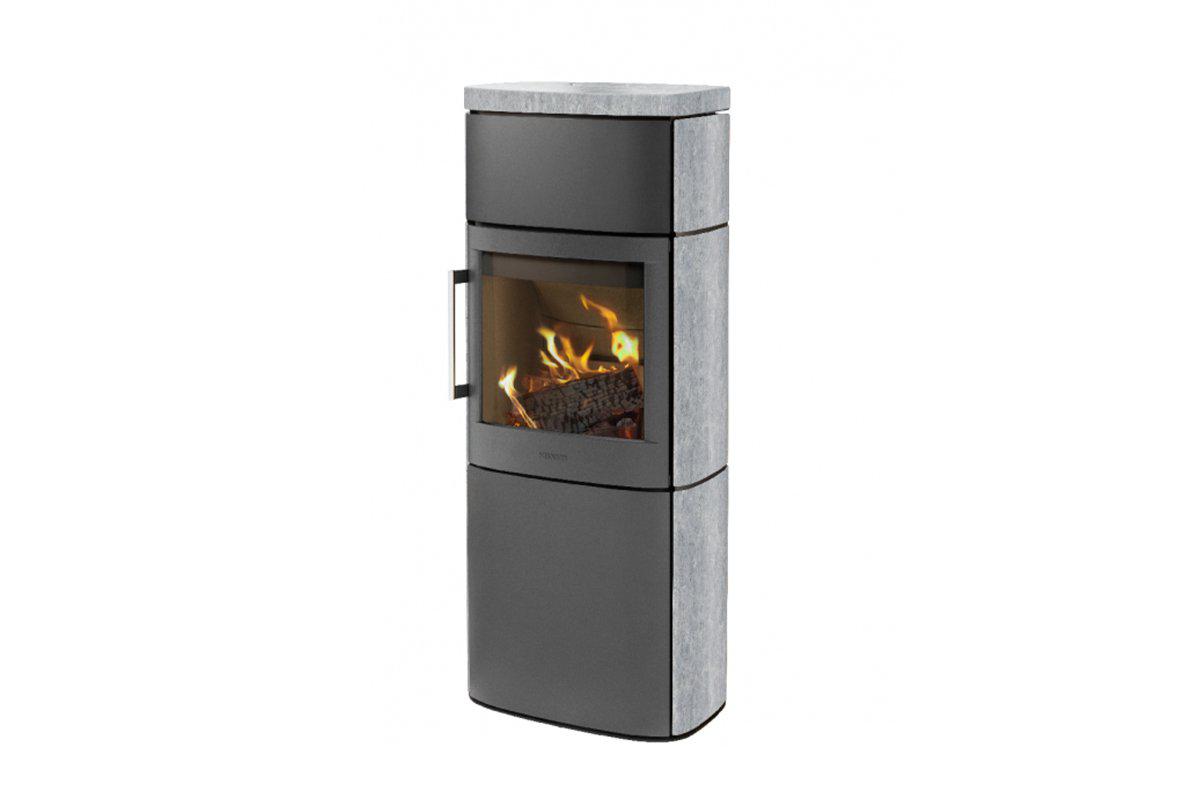

Available with soapstone or sandstone cover with black or grey steel bodywork
HWAM 4660M (withModernDoor
Available with soapstone or sandstone coverwith black or grey steel bodywork

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical
Technical data
Efficiency  80.0% / 81.0% with SmartControl
ErP Energy Rating
A+
Heat Output – Nominal
7.0kW
Heat Output Range 3.0 to 9.0kW
Defra Approved  Yes
2022 Ecodesign Ready Yes
Fuels Wood (≤ 20% moisture)
Flue outlet diameter 150mm top or rear
Airwash  Yes – top and sides
Air Controls Single control with Autopilot
Construction
Steel body / cast iron door
Fire Grate
Flat base with grate
Guarantee
5 Years
Maximum Log Length 400mm / 16"
Weight  4660C 153kg / 4660M 151kg
Weight: Heat Retaining Stones  Add 45kg
Weght: Stone Covers   Add 45kg approx
Finishes Black or Grey. White 4660M only
Five different stone covers / lid
Air Vent Required Yes (or use DEAS subject to regs)
Direct Air Inlet (DEAS) 100mm dia / Rear or base
Distance to Combustible materials (mm) Rear 200  Sides 350
Overall Dimensions (mm)
H1388  W630  D406
Approvals
EN 13240 (ROI and Europe) Yes
 Defra Exempt under the Clean Air Act (UK) Yes
HETAS Approved Appliance (2019) Yes












Drawings

Downloads
  1. Hwam Brochure UK
  2. User's manual for the HWAM 4600 series (EN)
  3. User's manual for the HWAM 4600 series with HWAM® SmartControl™ (EN)
  4. User Manual HWAM® SmartControl™ Generation 2 (EN)
  5. Assembly instructions for combustion air system (HWAM 4620)
  6. Assembly instructions for combustion air system (HWAM 4640, 4660 & 4680)
  7. Assembly instructions for combustion air system for stoves with HWAM®
  8. SmartControl™ (HWAM 4620)
  9. Assembly instructions for combustion air system for stoves with HWAM®
  10. SmartControl™ (HWAM 4640, 4660 and 4680)
  11. Mounting of stone cover (HWAM 4620 & 4640)
  12. Mounting of stone cover (HWAM 4660 & 4680)
  13. Mounting the heat storage (HWAM 4660 & 4680)
  14. Mounting adjustable feet
  15. Quickguide - HWAM® SmartControl™ (EN)
