HWAM 4660M

A wood-burning stove that will fit into any home thanks to its unique design

If you are looking for a wood-burning stove that offers an even better view of the flames and at the same time radiates elegance and humility for your interior design, then the 4660 model may be the right one for you. With the optional installation of heat-storing stone, the heat is radiated evenly over a period of several hours.

Options:

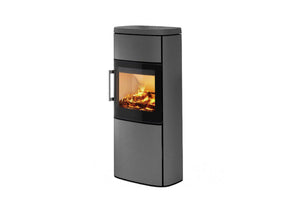

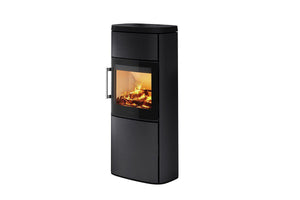

HWAM 4660m (modern door) - Available in white, grey or black steel
HWAM 4660c (classic door) - Available in white, grey or black steel

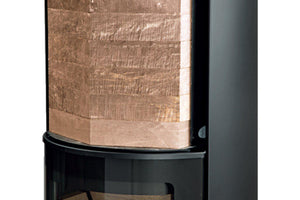

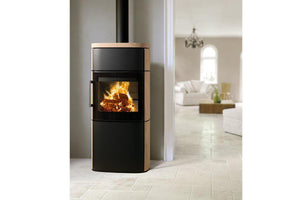

HWAM 4660c (classic door) - Available with soapstone or sandstone cover - black or grey steel
HWAM 4660m (modern door) - Available with soapstone or sandstone cover - black or grey steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.


Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-9kW
AutomaticTM nominal heat output (kW) 7,0
IHSTM nominal heat output (kW) 8,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 49
Height (cm) Stove body 138,8
Width (cm) 63,0
Depth (cm) 40,6
Weight
Weight (kg) 153
Heat Retaining Stones (kg) 45
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 20
Distance to inflammable materials, side(cm) 35
Distance to inflammable materials, front(cm) 75
Distance to inflammable materials, corner location (cm) 12-41
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 130
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 80/81
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings

Downloads
  1. Hwam Brochure UK
  2. User's manual for the HWAM 4600 series (EN)
  3. User's manual for the HWAM 4600 series with HWAM® SmartControl™ (EN)
  4. User Manual HWAM® SmartControl™ Generation 2 (EN)
  5. Assembly instructions for combustion air system (HWAM 4620)
  6. Assembly instructions for combustion air system (HWAM 4640, 4660 & 4680)
  7. Assembly instructions for combustion air system for stoves with HWAM®
  8. SmartControl™ (HWAM 4620)
  9. Assembly instructions for combustion air system for stoves with HWAM®
  10. SmartControl™ (HWAM 4640, 4660 and 4680)
  11. Mounting of stone cover (HWAM 4620 & 4640)
  12. Mounting of stone cover (HWAM 4660 & 4680)
  13. Mounting the heat storage (HWAM 4660 & 4680)
  14. Mounting adjustable feet
  15. Quickguide - HWAM® SmartControl™ (EN)
