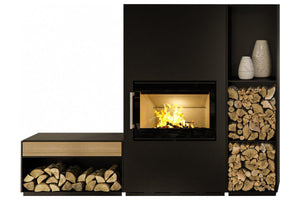

HWAM 5530M in black with all Modules

Two, three or four modules?

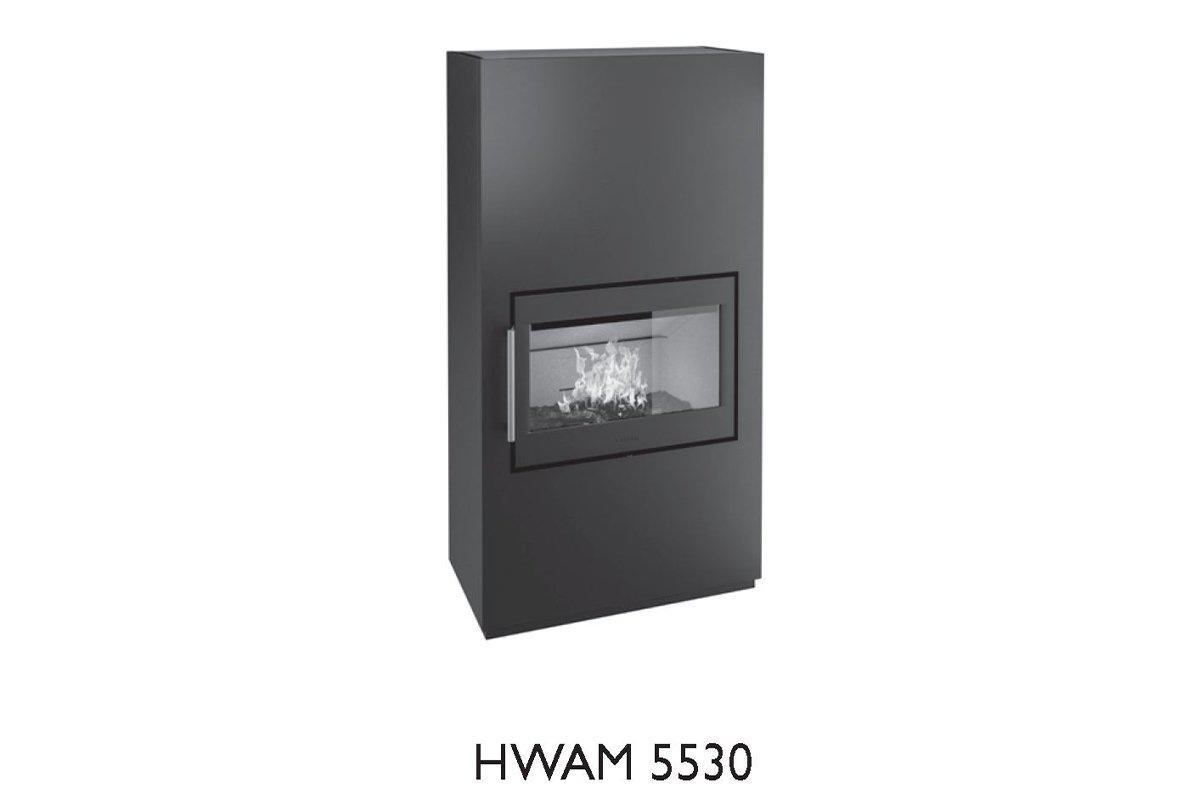

Whatever the number of modules, the result is always the same: a stylish wood-burning stove of a modern Danish design. HWAM 5530 is the name of our new modular wood-burning stove.
Whether you choose one or several modules, the stove will always appear as one integrated unit. The design is streamlined and functional. The sharp angles tell the story of Danish design and attention to detail. The functions are unmistakable. Keep your firewood in the modules or take a break and enjoy the heat. Add a stylish cushion on top of the side module to enjoy the heat and the crackling sounds close up. HWAM 5530 may be designed with high and/or low modules, with or without drawers. You decide!
Optional right- og left hinged door.

You can get this stove with both HWAM® Autopilot™ & HWAM® SmartControl™.



Technical

Technical data

Energy efficiency class HWAM® Autopilot™

Energy efficiency class HWAM® SmartControl™

HWAM® Autopilot™
Yes
HWAM® SmartControl™
Yes
Capacity (kW)
4-8
Nominal heat output Autopilot™/SmartControl™ (kW)
6,4 / 6,0
Smoke outlet, Ø (mm)
150
Chimney draught, recommended Autopilot™/SmartControl™(Pa)
11 / 12
Combustion chamber width (cm)
55
Height (cm)
168,5
Width (cm)
90
Depth (cm)
45



Drawings






Downloads

Hwam Brochure UK

Hwam 5530 Launch Flyer



Prices (Temporary)

Prices reflect RRP Inc Vat GBP

HWAM 5530c, left- og right hinged door, top og back outlet . 2.995,-
HWAM 5530m, left- og right hinged door, top og back outlet 3.195,-
Accessories:

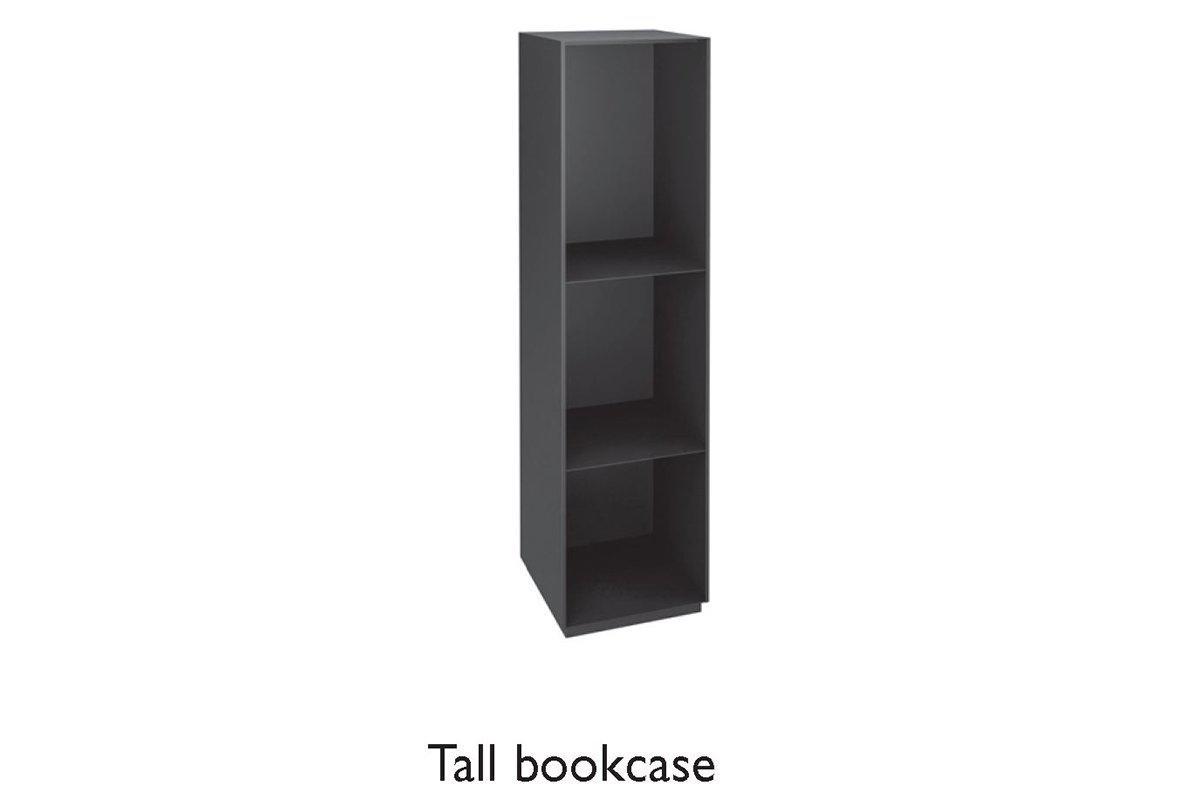

Tall bookcase . 495,-

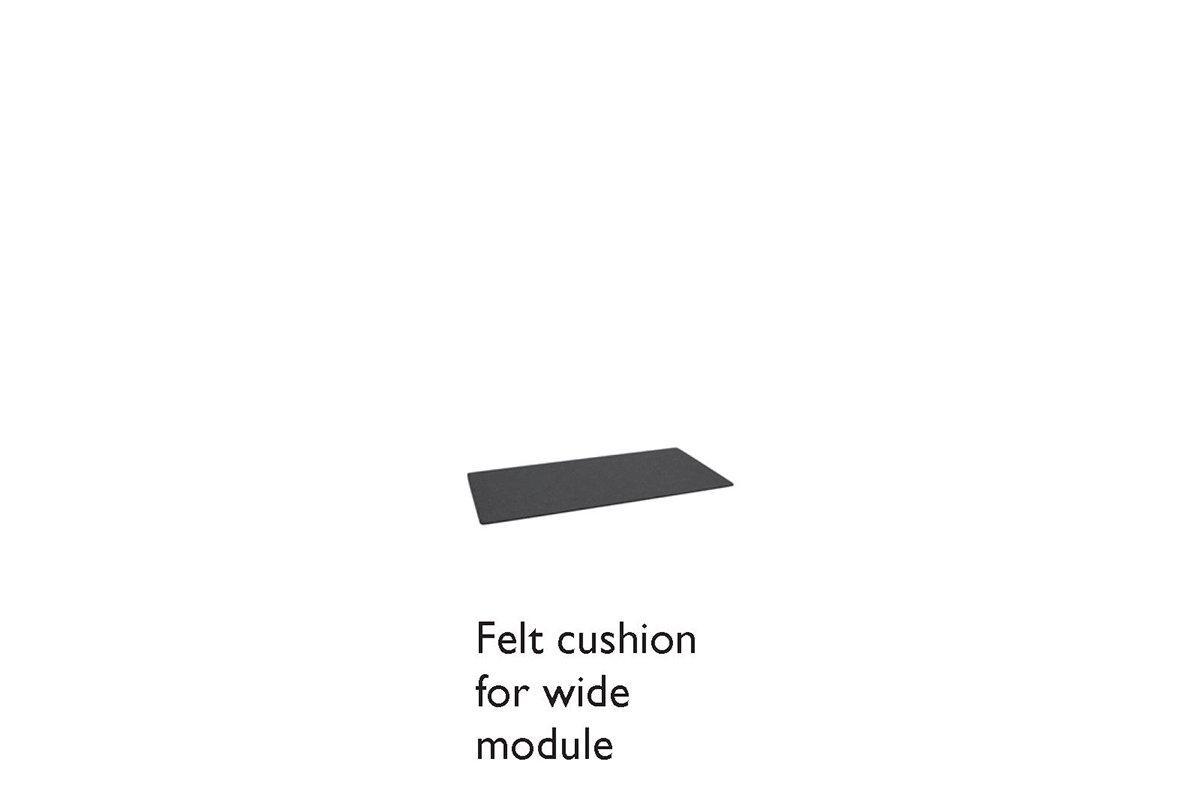

Narrow module without drawer, incl. felt cushion . 395,-
Narrow module with wood drawer front (oak or walnut), incl. felt cushion 695,-
Wide module without drawer, incl. felt cushion . 495,-

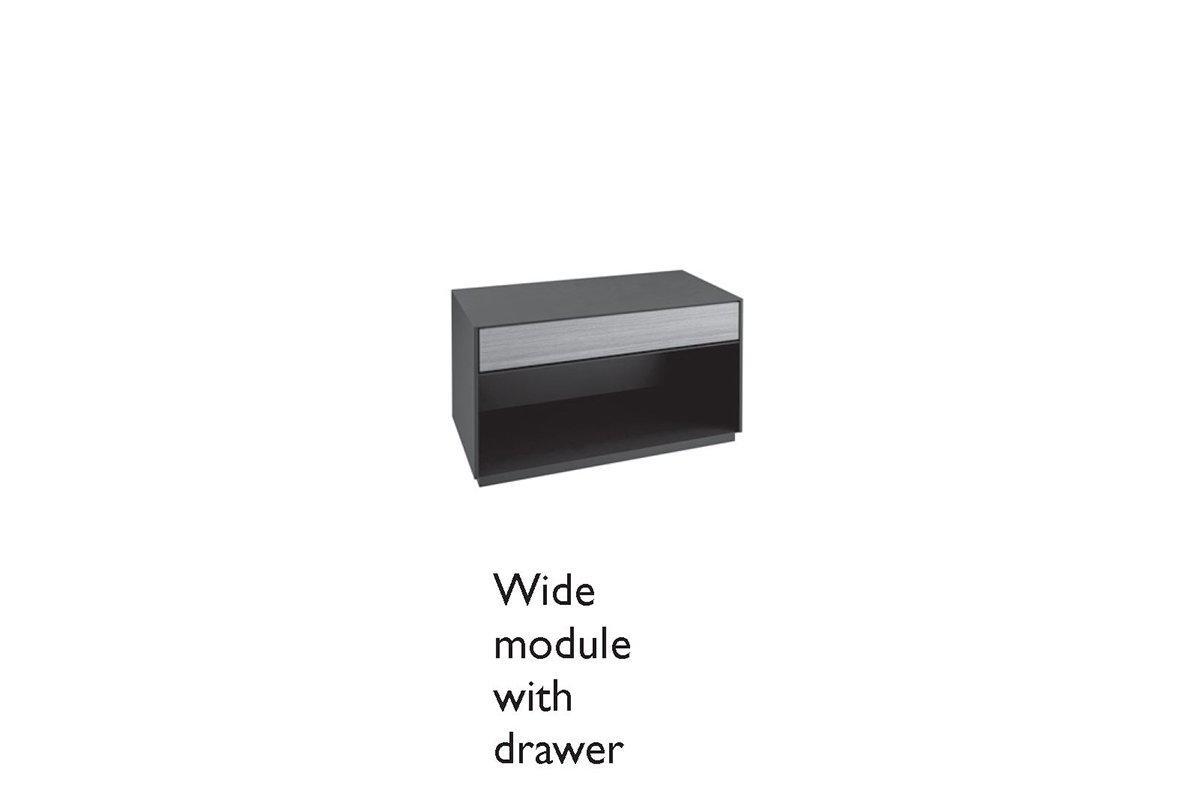

Wide module with wood drawer front (oak or walnut), incl. felt cushion 845,-
Heat storage stones 495,-
Fresh air system, Ø100 mm, rear/floor connection, Autopilot™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95,-
Reinforcing floor plate 75,-
