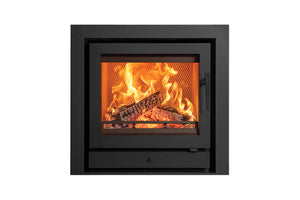

STOVAX RIVA2 50 WOOD BURNING INSET STOVE

Stovax offer you a choice of three Defra approved 5.0kW inset stoves in their striking new Riva2 collection with the Stovax Riva2 50 Wood Burning Inset Stove sitting in the middle. It's the same height as the Riva2 40, so will fit within a standard 550mm (22") high fireplace opening. However, the opening will need some modification to take the Stovax Riva2 50's widescreen format since it is some 140mm (5.5" approx) wider, but for that you get a much greater flame picture. Like all of the stoves in the Riva2 range lowering emissions has been critical to the design of their combustion chambers so that they are easily amongst the cleanest burning convector insets available today. For example, the Stovax Riva2 50 produces around 50% less particulate matter (PM2.5) than that required to meet the demanding new Ecodesign emissions regulations.

One distinct advantage that the Stovax Riva2 50 offers you that you won't get on most convector inset stoves is the option to add warm air ducting to allow you to spread the heat to other rooms. This system usually works best when the chimney breast is purpose-built to accommodate the extra ducting requirements. The Stovax Riva2 50 also comes with integrated direct external air supply (DEAS) capability as standard, which can be supplied ether through the base or at the rear for greater installation flexibility. This and the warm air ducting make the Riva2 50 an excellent choice for post-2008 and low energy homes.

There's nothing fussy about the Stovax Riva2 50's clean contemporary lines where any potential visual distractions, such as the controls, handle and hinges, are kept to an absolute minimum, thus providing you with an uninterrupted view of the impressive flames. Since it's all about the fire this helps it work equally well in contemporary or traditional spaces. You also get a choice of two frame widths; 54mm for the Profil and, for a more minimalist look, the 30mm Profil XS. These also come in a choice of 3-sided for fireplaces and 4-sided for hole-in-the-wall installations. The Stovax Riva2 50's big window is kept clean with Stovax's superior Dualflow convergent air wash system which not only delivers preheated air from the top of the glass but also from the bottom for a more effective wash. The Stovax Riva2 50 has two smooth slider controls. The ReIgnite booster, which is cleverly concealed behind the ash pan compartment door, will provide all of the extra air needed for speedy ignition, either when first lighting the stove or when reloading fresh logs. This and the discreet secondary air control will allow you to precisely manage the 4.3kW to 6.kW heat output range (depending on fuel load) as well as maximise fuel economy.

Outstanding environmental performance, renowned build quality and attention to detail will easily make choosing the Stovax Riva2 50 for your home one of your best decisions and one that you we're confident that you'll happily benefit from for many, many years to come. In a nutshell you simply don't get to be the UK's biggest stove manufacturer without producing exceptional products that continue to exceed expectations. The Stovax Riva2 50 is such a product.

Check out the 5.0kW Riva2 55 for some extra height or the 5.0kW Riva2 40 for a multi fuel option.



Key Facts

Stovax Riva2 50 Inset Fire Key Facts

Fascia dimensions with frame mm
3 sided 30mm Profil XS   H575  W584
3 sided 30mm Profil        H599  W632
4 sided 54mm Profil XS   H596  W584
4 sided 54mm Profil        H644  W632

Flame viewing area mm H325  W396

Combustible Distances mm                    Sides 150  Top 500


Brand Stovax
Model Stovax Riva2 50
Heat output nominal 5.0kW
Output range  3.8kW to 6.5kW depending on fuel load
Efficiency  77.4%
ErP Energy Rating  A
Defra Approved                                       Yes
Fuel                  Seasoned wood logs (less than 20% moisture content)
Airwash                                               Advanced Dualflow Airwash (top and bottom)
Air Controls                           Two slider controls for primary / boost and secondary air
Construction                                          High quality steel exterior, cast iron grate, log guard and handle
Flue Outlet                                                Top only
Flue Diameter                                           125mm / 5"
Grate Type                                           Flat cast Iron bed with ash pan
Guarantee                                                5 years when registered with Stovax
Maximum Log Length             350mm / 14" approx
Standard Colour                         Traditional Matt Black
Optional Finishes                                    None
Options   30mm Profil XS narrow 3-sided and 4-sided frames 54mm Profil wider 3-sided and 4-sided frames
Weight  76.8kg
Air Vent Required                                     Not usually in pre-2008 homes (Subject to Building Regs)
Direct Air Inlet (DEAS)                      Yes, 80mm dia rear or base, integrated and ready to add ducting
Overall Dimensions mm                  Main body: H550  W576  D350 exc DEAS spigot
