Stovax Riva2 66 Inset Fire

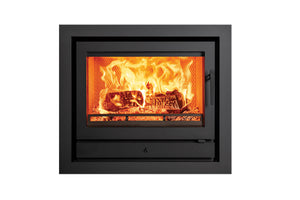

STOVAX RIVA2 66 WOOD BURNING INSET STOVE

At 8.1kW the Defra approved Stovax Riva2 66 widescreen wood burning inset stove has the largest heat output of the four new Stovax Riva2 convector insets. Remarkably for such an output, the Stovax Riva2 66 features a flue outlet of just 125mm (5") which has the advantage of providing greater installation flexibility and also helping to keep fitting costs down. One fairly unique feature of the Stovax Riva2 66 is that you can also easily add a warm air ducting system to it from its two top outlets to distribute its generous heat within a larger living space or to two other adjacent rooms. When you consider that with the Stovax Riva2 66 you also get the option for direct external air supply (DEAS) integrated from the rear or base as standard, this will further make the Stovax Riva2 66 inset a great choice for low energy homes and modern open plan living.

The Stovax Riva2 66's big landscape picture window is kept beautifully clear with Stovax's advanced DualFlow system which not only directs warm air from the top of the glass, but also from the base, for a much improved airwash. As with all Stovax appliances the construction is first class, heavy duty and made to last. For example, unlike most modern wood burners the fire chamber floor of the Stovax Riva2 66 is constructed of steel and high quality cast iron and features a movable inner grate which can be remotely opened and closed to maximise the fuel's access to combustion air when first lighting the fire or reloading fuel and minimising the time it takes to get to full operating temperature with minimal emissions.

The Stovax Riva2 66's stunning good looks are further enhanced with a choice of two frame profile widths 54mm and minimal 30mm XS. These can be specified as 3-sided for ground level hearths or 4-sided for hole-in-the-wall installations at height. Whichever frame you choose the Stovax Riva2 66 will create an exceptional focal point with its wonderfully grand flame patterns. Finally, the Stovax Riva2 66's environmental credentials are impeccable and are well below the standards required by the tough Ecodesign Regulations so that you can be sure that when you choose this stove to heat your home with sustainable wood logs you're not only significantly reducing your homes's carbon footprint but that you're also going to minimise the impact heating your home will have on the environment and your local air quality.



Key Facts

Stovax Riva2 66 Inset Fire Key Facts

Fascia dimensions with frame mm
3 sided 30mm Profil XS   H575  W694
3 sided 30mm Profil        H599  W742
4 sided 54mm Profil XS   H596  W694
4 sided 54mm Profil        H644  W742

Flame viewing area mm H325  W506

Combustible Distances mm                    Sides 100  Top 500


Brand Stovax
Model Stovax Riva2 66
Heat output nominal 8.1kW
Output range  5.5kW to 9.0kW depending on fuel load
Efficiency  76.5%
ErP Energy Rating  A
Defra Approved                                       Yes
Fuel                  Seasoned wood logs (less than 20% moisture content)
Airwash                                               Advanced Dualflow Airwash (top and bottom)
Air Controls                           Two slider controls for primary / boost and secondary air
Construction                                          High quality steel exterior, cast iron grate, log guard and handle
Flue Outlet                                                Top only
Flue Diameter                                           125mm / 5"
Grate Type                                           Flat cast Iron bed with ash pan
Guarantee                                                5 years when registered with Stovax
Maximum Log Length             450mm / 18" approx
Standard Colour                         Traditional Matt Black
Optional Finishes                                    None
Options   30mm Profil XS narrow 3-sided and 4-sided frames 54mm Profil wider 3-sided and 4-sided frames
Weight  87.2kg
Air Vent Required                                     Yes (alternatively use DEAS)
Direct Air Inlet (DEAS)                      Yes, 80mm dia rear or base, integrated and ready to add ducting
Suitable for 12mm hearth No, must be sited on a 125mm constructional hearth when installed at floor level. Not needed if installed a minimum of 200mm above floor height
Overall Dimensions mm                  Main body: H550  W650  D350 exc DEAS spigot





Downloads

Stovax Riva2 66 Inset Fire User Instructions

Stovax Riva2 66 Inset Fire Installation Instructions

Stovax Riva2 66 Brochure
