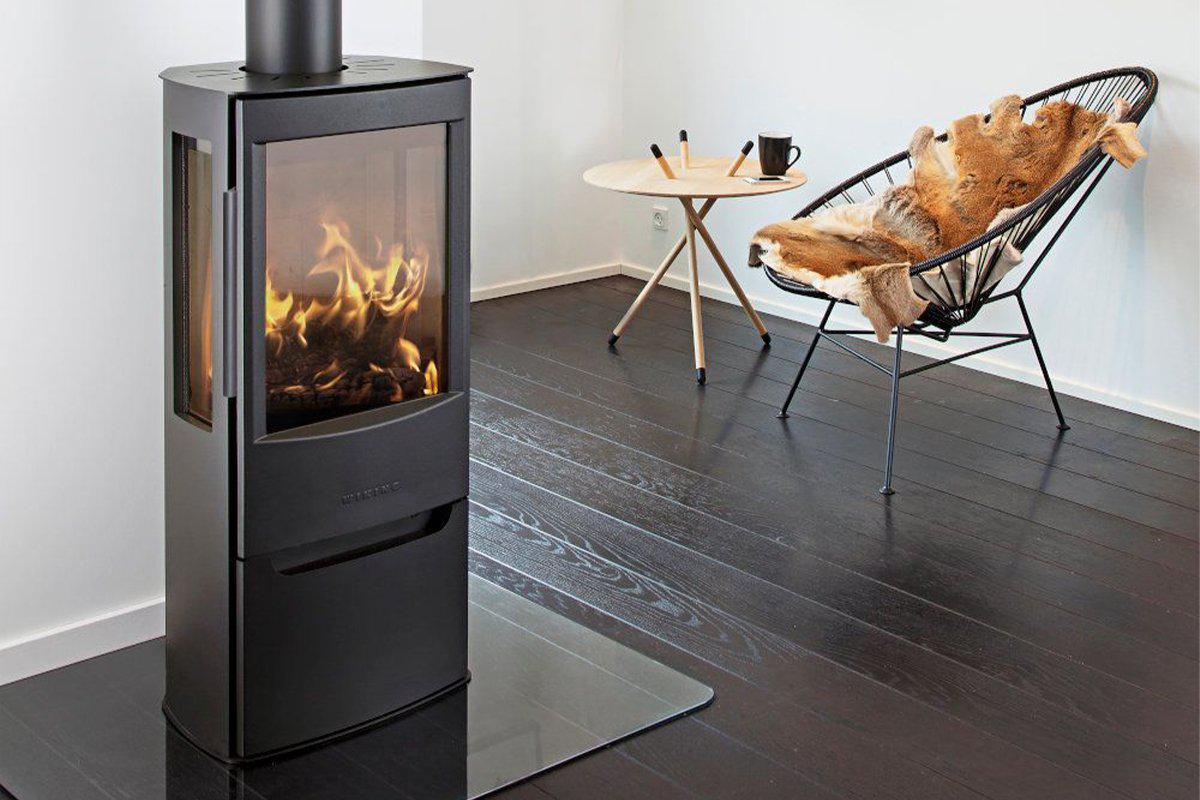

WIKING Miro 3 Lower Door

WIKING Miro 3 Lower Door with Side Glass

The WIKING Miro 3 Lower Door Stove is a stylish, beautifully proportioned 4.9kW Defra approved wood burner from Danish premium stove maker Wiking and has been designed to create a wonderful focal point in any living space or larger fireplace opening. Everything about the WIKING Miro 3 Lower Door just oozes class from its perfectly balanced DIBt tested cast iron door that ensures a secure room seal with the minimum of effort (all thanks to Wiking's patented closure mechanism) to the meticulously engineered and densely moulded vermiculite fire chamber lining which maximises heat retention and eliminates cold corners to increase the WIKING Miro 3 Lower Door Stove's efficiency and minimise its emissions.

Big air washed windows on three sides ensure that you'll always get a great view of the fire from the WIKING Miro 3 Lower Door with the extra height the compartment provides giving the fire chamber even more presence. The full height fire chamber door along with the compartment door and its recessed grab handle are beautifully co-ordinated to provide a virtually seamless facade that is only disrupted by the fire chamber's cool touch handle. Unlike too many stoves we know of this has been specifically designed with safety in mind to provide you with the maximum practical space between the your hand and the hot bodywork. Everything about the WIKING Miro 3 Lower Door has simply been designed to allow the flames to be the centre of attention.

The superior steel bodywork, premium cast iron fire chamber door and cast fire grate with separate ash pan tell you immediately that the WIKING Miro 3 Lower Door with its lower door is a high quality stove that has been incredibly well built with every aspect of its design and operation thoroughly considered by Wiking. The WIKING Miro 3 Lower Door Stove's outstanding clean burning credentials are aided by the Wiking Automatic which comes as standard. This is a tried and tested, purely mechanical device which boosts the WIKING Miro 3 Lower Door's supply of primary combustion air when lighting and refuelling and at the end of the burn cycle to help keep the fire chamber hotter so that more particulates are burned off. Pre-heated tertiary air (the little jets on the fire chamber back wall) supply additional combustion air to burn off even more of the remaining particulates just before they leave the fire chamber. All of this ensures maximum heat from your wood fuel with minimum emissions being produced.

Flame height and the 3.0kW to 8.0kW heat output range are precisely managed with the single user-friendly slider control just under the fire chamber door. Being DIBt tested and having direct external air supply capability means that the quality of the WIKING Miro 3 Lower Door's room seal ensures that you can safely install it in low energy homes – even those that meet PassiveHouse or AECB CarbonLite standards or have MVHR systems. However, whether you want to install the it in a low energy home or not you can be sure that the Miro 3 will enhance your home and give you many, many years of faithful service and also provide you with pleasure that very few of your other household purchases will ever match.

NB Also check out the Miro 3 model variation with the open fronted log store



Technical

WIKING Miro 3 Lower Door Stove Key Facts


Brand: Wiking
Model WIKING Miro 3 Lower Door
Nominal Heat Output:    nominal 4.9kW
Heat Output Range:   3.0kW to 8.0kW depending on fuel load
Efficiency (Net):   Up to 78.0%
ErP Energy Rating A
Defra Smoke Exempt:   Yes
Fuel:   Seasoned wood logs (less than 20% moisture content)
Airwash:   Yes – top and left and right hand sides
Air Controls:

Wiking Automatic system plus secondary air control

Construction: Cast iron door and fire chamber base with steel bodywork
Flue Outlet:    Top or Rear (optional blanking plate required when using rear flue)
Flue Diameter 150mm  / 6"
Grate Type Flat bed with open / close centre grate and ash pan
Guarantee:    5 Years
Maximum Log Length 280mm / 11" approx
Standard Colour

Matt black

Optional Finishes:   Grey
Options:   Direct external air supply system (aka 'Fresh Air System')

Top flue outlet blanking plate (when using rear flue)
Net Weight:   90.0kg
Recommended Log Length (mm):  275 (11") 275 (11")
Air vent required:    Not usually in pre-2008 homes (Subject to Building Regs)
Suitable for 12mm Hearth:   Yes
Direct Air Inlet (DEAS):  Base or rear. 76mm dia (additional fresh air kit required)
Overall Dimensions:  H1012  W468  D356
Minimum Combustible Distances (mm):   Sides 520  Rear 100





Downloads

Wiking Stoves Catalogue

Wiking Miro User Manual

Wiking Miro Energy Label and Product Fiche

Wiking Miro Direct Air Assembly

Wiking Miro Pedestal Assembly

Wiking Miro Plinth Assembly

Wiking Miro Wall Assembly

Wiking Miro Top to Rear smoke outlet change

Dimensions

WIKING Miro 3 Lower Door Dimensions
