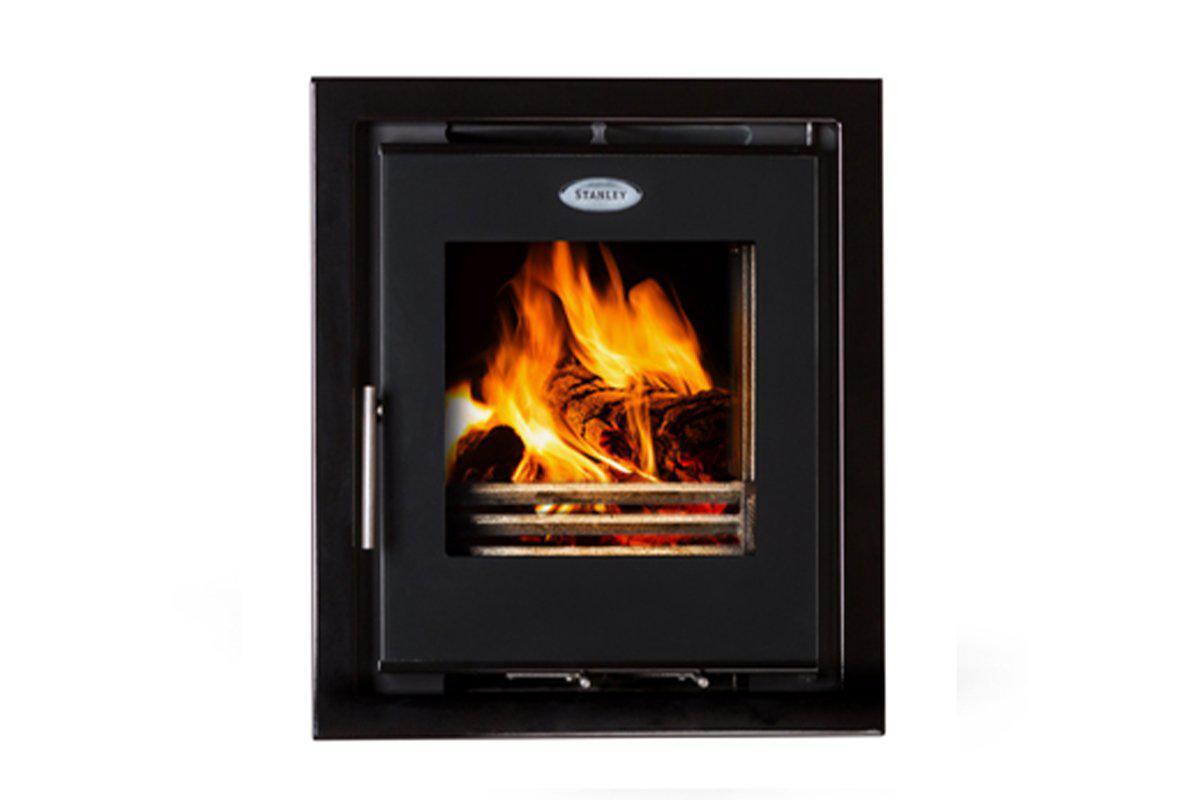

Stanley Cara Glass Insert Eco Stove

The contemporary Cara Glass by Waterford Stanley is the ideal solution for those who want warmth, efficiency and contemporary good looks. The Cara Glass Insert is three times more efficient than an open fire and takes up minimal hearth space meaning less intrusion in your room. The Cara Glass comes in 3 and 4 frame meaning it can fit into standard fireplace or can be placed on a wall.

The Cara Glass will burn smokeless fuel, dry wood, coal, anthracite and seasoned peat briquettes.


Key Features
  • Max 6.5kW output to the room
  • Fits into a standard fireplace
  • Net efficient 78.1% - three times more efficient than an open fire
  • Top flue outlet only
  • Available in 3 and 4 sided frame
  • Easily connected to a standard 125mm diameter chimney
  • Large viewing glass
  • Secondary air provides cleaner combustion
  • Window wash air to maintain a clean glass
  • Raised grate for optimum fuel burn
  • Large ashpan
  • High quality, cast iron build
  • Suitable for all types of approved solid fuelEcodesign SIA Logo
  • Tested & approved to European standard - EN 13229
  • Ecodesign 2022 approved
  • A Energy rated
  • 5 year warranty on Stanley solid fuel stoves. For more information, please click here.
  • Cleanance to combustible material needs to be adhered to when installing the Cara Insert. Please refer to manual.

Optional Extra

  • External air supply kit

Installation

Multi Fuel Stove

  • Burns anthracite, coal, smokeless fuel, seasoned peat briquettes and dried wood  - Do not use high moisture content fuels as they will affect performance & damage the unit. Our grates are made from high chromium which are able to withstand higher temperatures from smokeless coal

Energy Labels

  • From the 1st January 2018 all solid fuel and wood burning room only and room and central heating freestanding and insert stoves must be sold with a printed label which shows their heat output and energy efficiency index. Note outputs listed on energy labels for our Stanley stoves are nominal values whereas as Stanley stoves outputs shown on our website, brochures and point of sale are max outputs.


Specification
  • Unpacked Dimensions
    • Height 600mm
    • Width 552mm
    • Depth 380mm
    • Weight 100kgs
    • Flue Requirement Top
  • Efficiency
    • Wood 78.1%
    • MSF 78.1%
    • Airwash Yes
  • Fuel
    • Multi Fuel Yes
    • Solid Fuel Yes
  • Flue
    • Top Yes
  • Position
    • Inset Yes
  • Finish
    • Black Yes
  • Function
    • Room Heater Yes





Dimensions

Instructions

Download Cara Glass Insert Stove Operation Manual
