Fondis Ulys 1100

Fondis Ulys 1100 Inset, Showpiece Stove

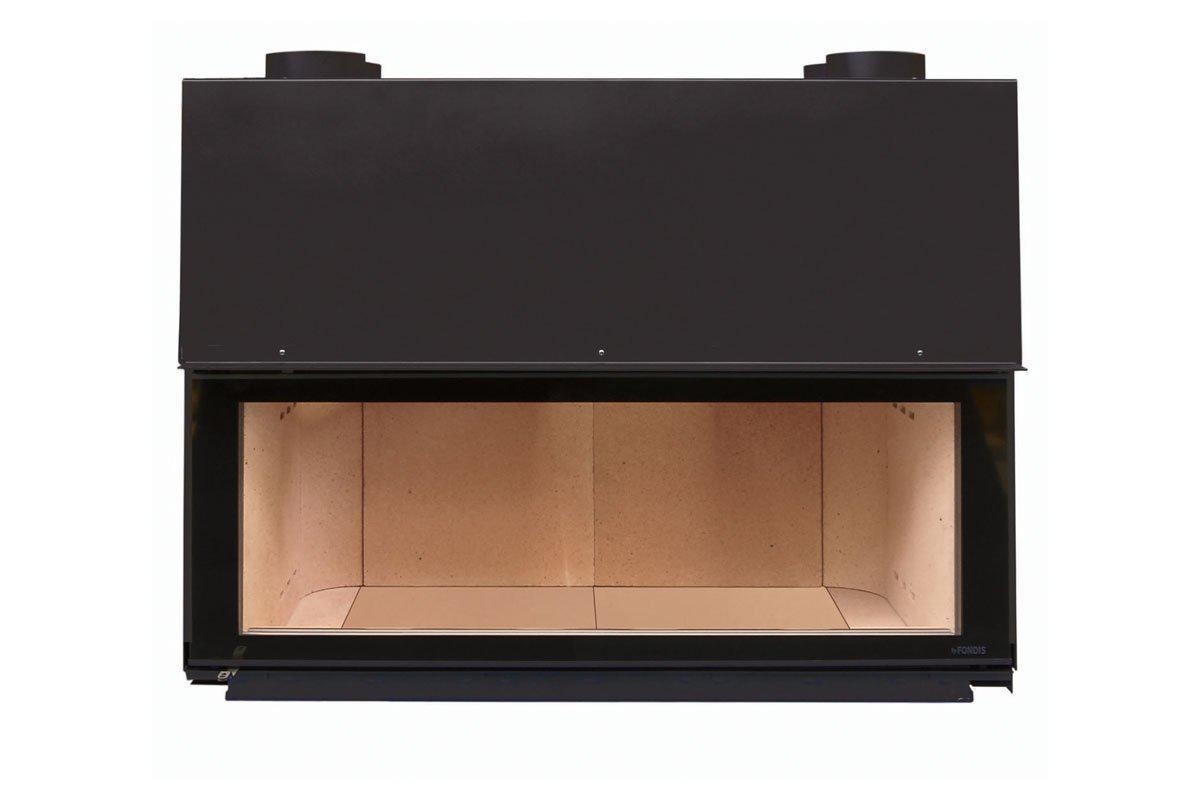

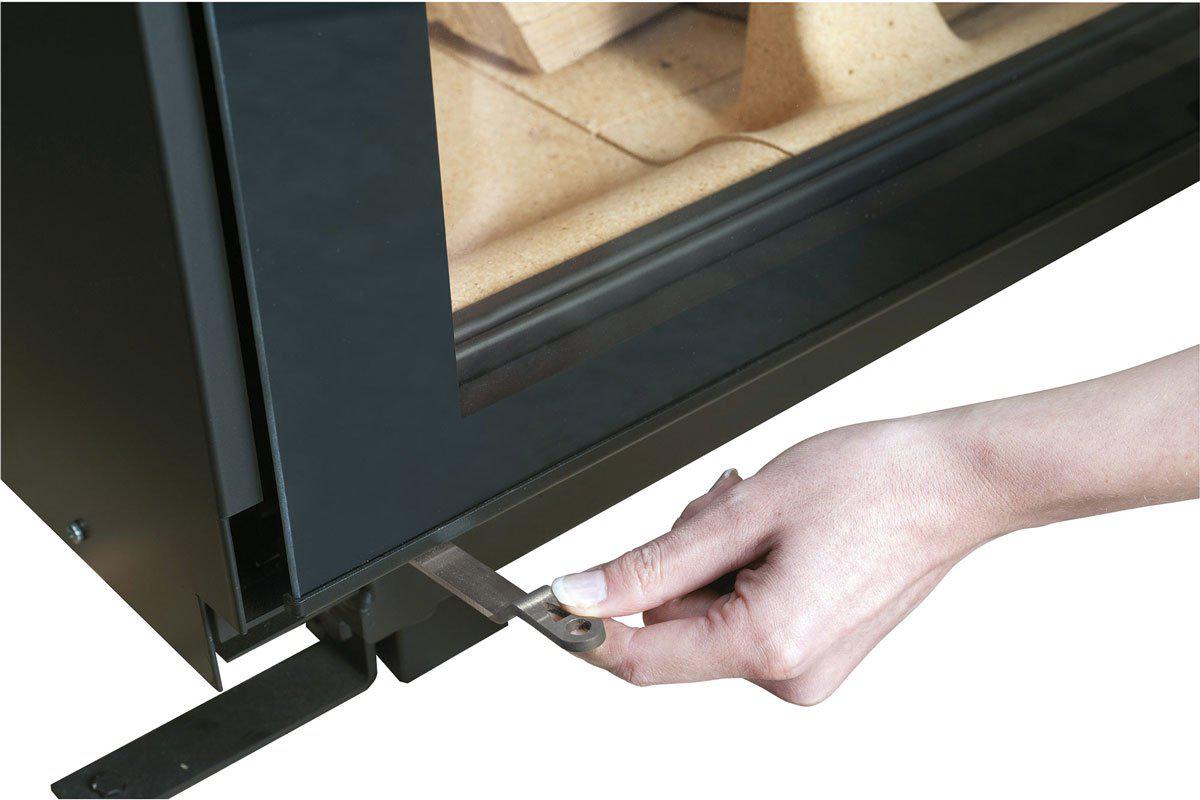

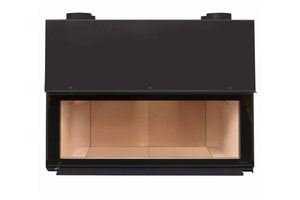

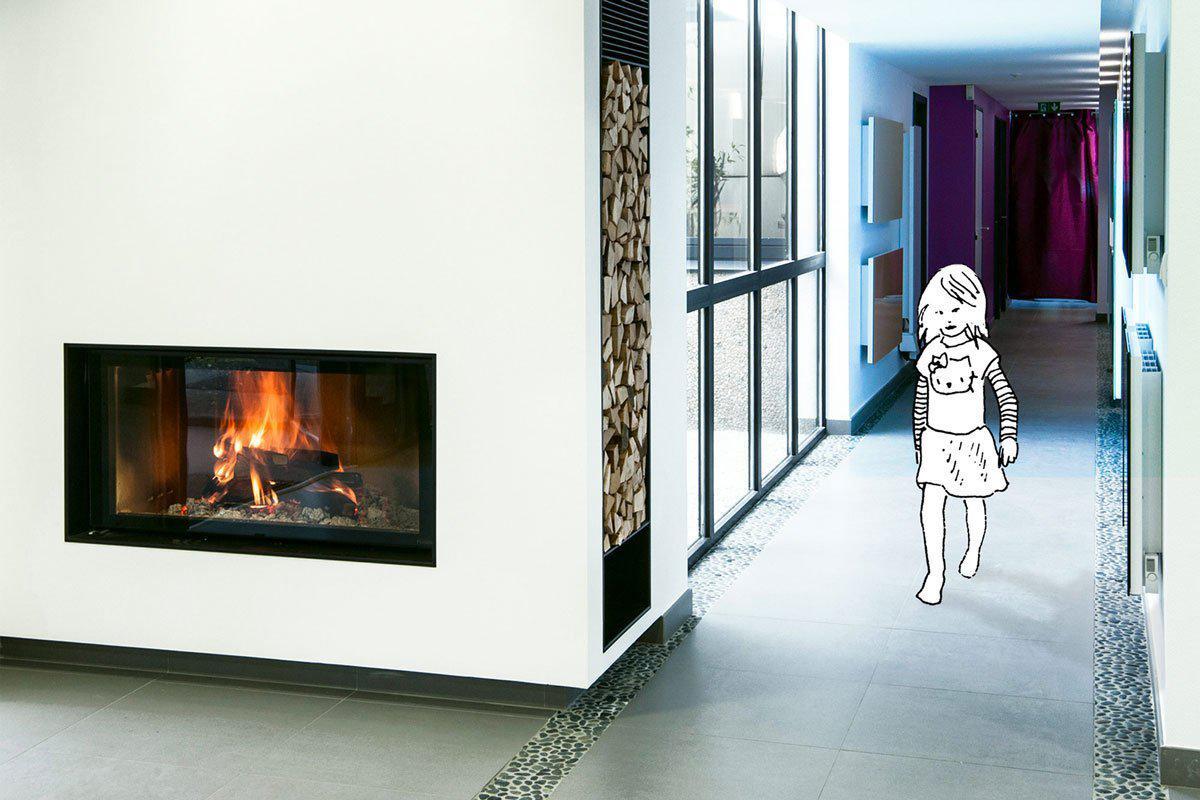

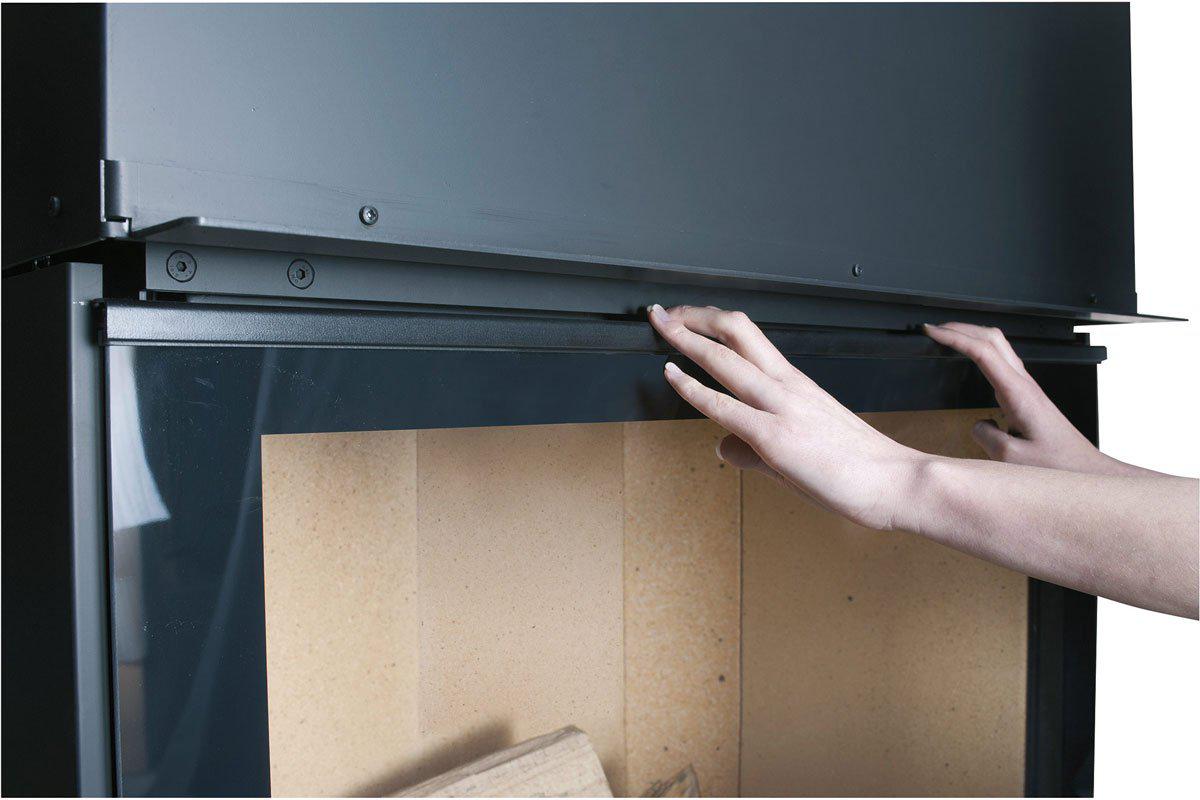

The Fondis Ulys 1100 is a luxury letterbox inset stove designed to burn logs and logs only. The full glass door slides up and into the wall to open and the control are easy to use. With the Ulys 1100 you get a very wide view of the flames; the width of this stove is over 1100mm. Rated at 14kW at 78% efficiency, the Ulys 1100 could easily give out more heat than this if needed, or be burnt at a lower output

Technical
General
HEIGHT (MM) 1294
WIDTH (MM) 1165
DEPTH (MM) 676
INTERNAL DIAMETER OF FLUE OUTLET (MM) 175-225
FLUE DIAMETER (MM) 230
FUEL Wood
AIRWASH Yes
ECODESIGN READY Yes
ENERGY EFFICIENCY CLASS A
WEIGHT (KG) 270
MAX LOG LENGTH (CM) 70
Normal Rate
NOMINAL HEAT OUTPUT (kW) 14
EFFICIENCY (%) 79
CO EMISSIONS (% @ 13% O2) 0.13
DUST EMISSIONS (MG/M3 @ 13% O2) 40
WOOD CONSUMPTION (KG/H) 3.81
Reduced Rate
HEAT OUTPUT (kW) 4.6
WOOD CONSUMPTION (KG/H) 1.27
Dimensions

Fondis Ulys 1100 Dimensions

Downloads

Fondis Ulys Manual (pdf)

Installation Supplement (pdf)

MVHR Manufacturers Declaration (pdf)

Ulys Fire Brick Exploded Diagram (pdf)

Ulys Frame Fitting Guide (pdf)
