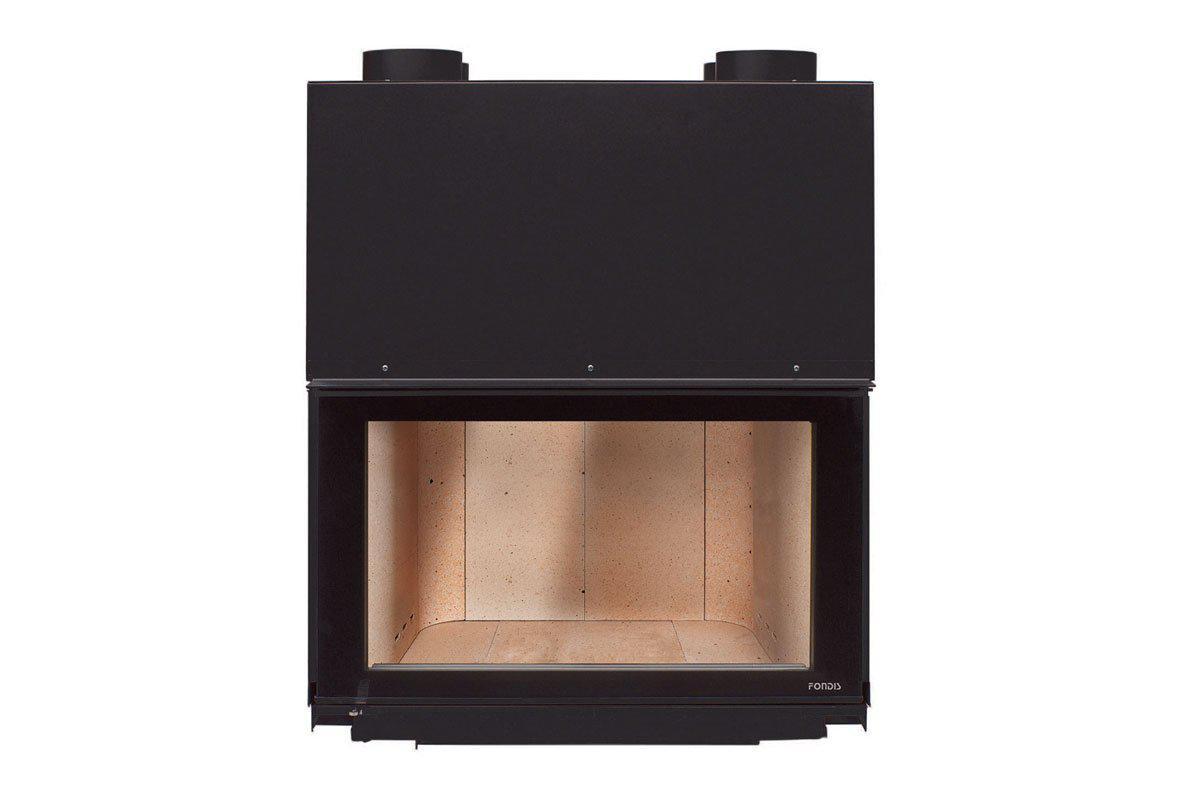

Fondis Ulys 700

Fondis Ulys 700 Inset, Showpiece Stove

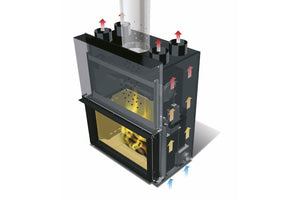

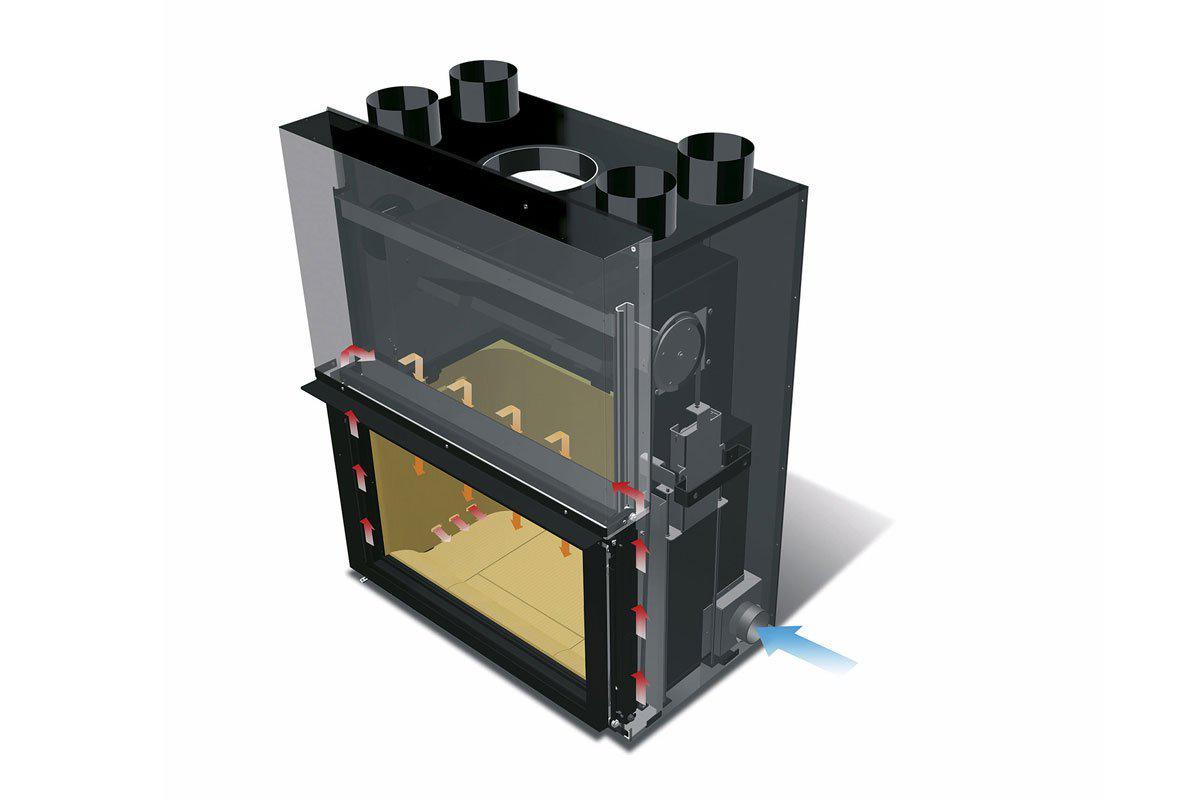

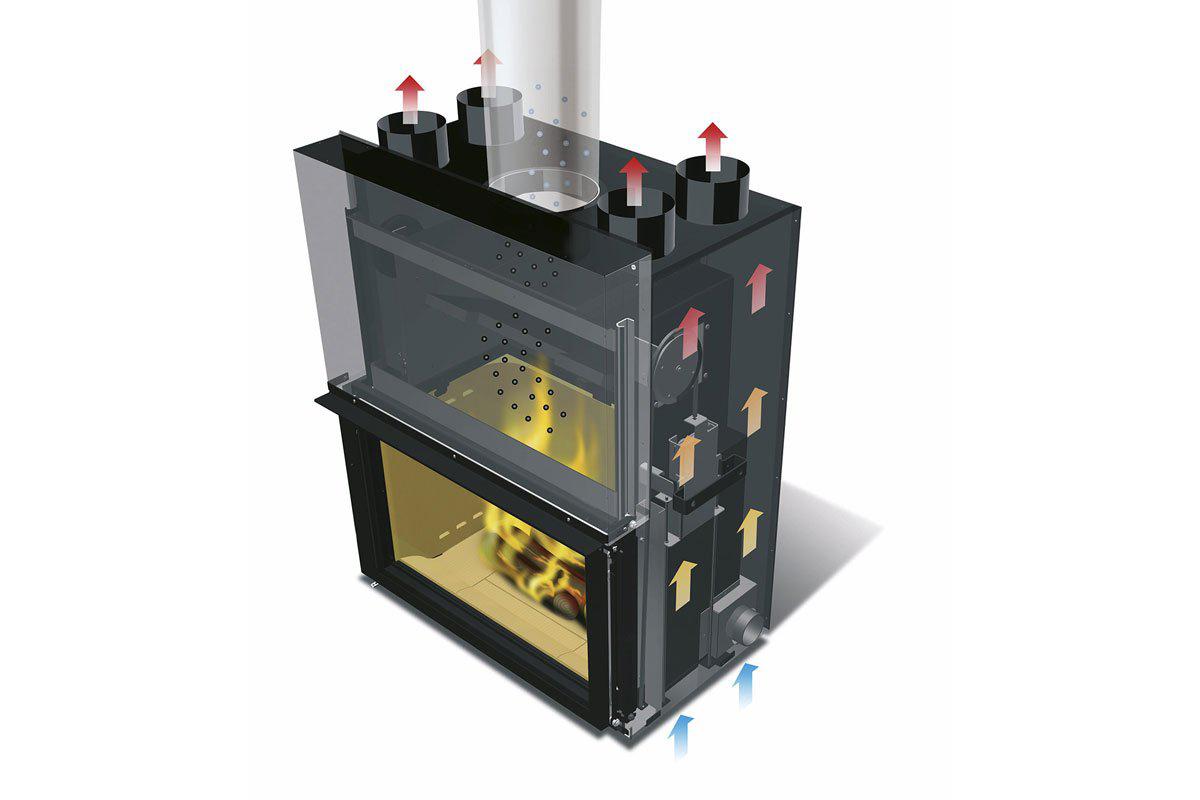

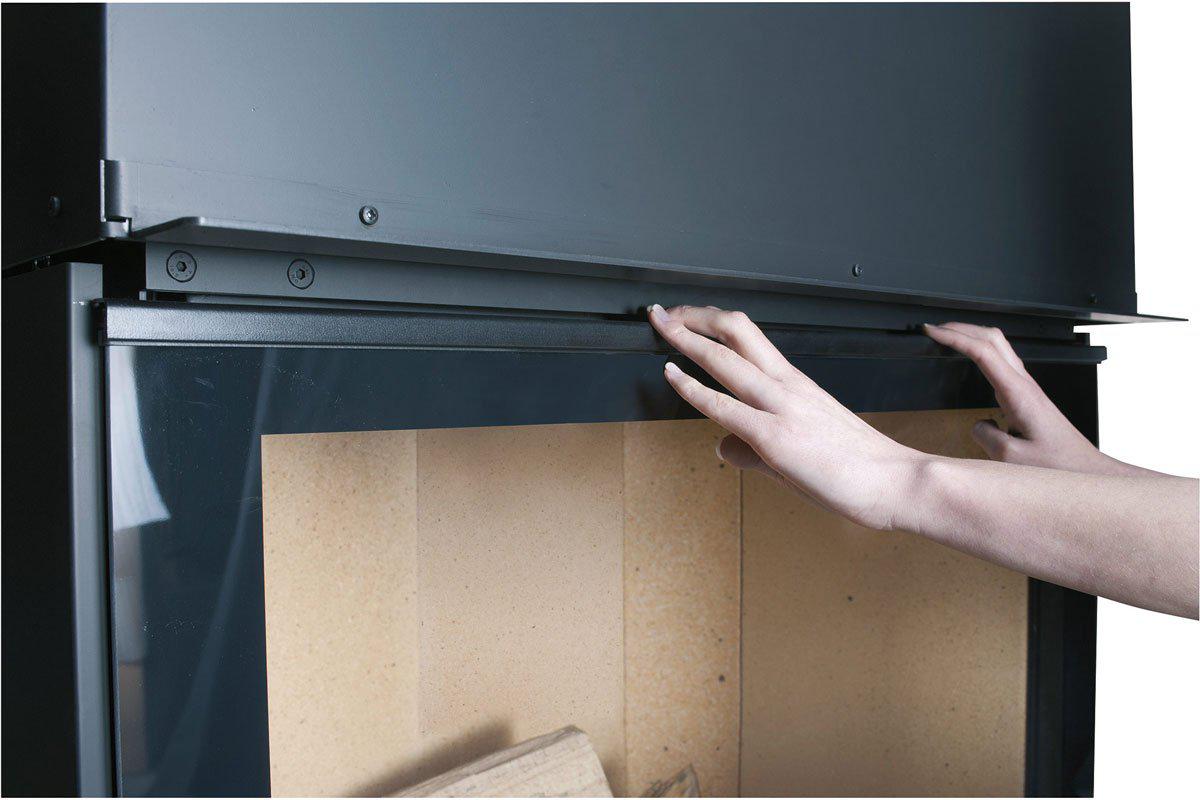

The Ulys 700 is a luxury insert stove that can give up to 13.5kW of heat. It has a large flat window with glass that extends to the edge of the door frame, and the door opens by sliding up and into the wall. Internally a clever firechamber design helps the Ulys 700 achieve efficiencies of 79% when burning wood. With the Zero CO catalyst fitted, the efficiency increases to 81% and CO levels drastically drop, as do particulates.

Technical
General
HEIGHT (MM) 1418
WIDTH (MM) 789
DEPTH (MM) 644
INTERNAL DIAMETER OF FLUE OUTLET (MM) 175-200
FLUE DIAMETER (MM) 200
FUEL Wood
AIRWASH Yes
ECODESIGN READY Yes
ENERGY EFFICIENCY CLASS A+
WEIGHT (KG) 200
MAX LOG LENGTH (CM) 60
Normal Rate
NOMINAL HEAT OUTPUT (kW) 11
EFFICIENCY (%) 82.1
CO EMISSIONS (% @ 13% O2) 0.08
DUST EMISSIONS (MG/M3 @ 13% O2) 23.2
WOOD CONSUMPTION (KG/H) 2.88
Reduced Rate
HEAT OUTPUT (kW) 3.53
WOOD CONSUMPTION (KG/H) 0.84
Dimensions

Fondis Ulys 700 Dimensions

Downloads

Fondis Ulys Manual (pdf)

Installation Supplement (pdf)

MVHR Manufacturers Declaration (pdf)

Ulys Fire Brick Exploded Diagram (pdf)

Ulys Frame Fitting Guide (pdf)
