R5

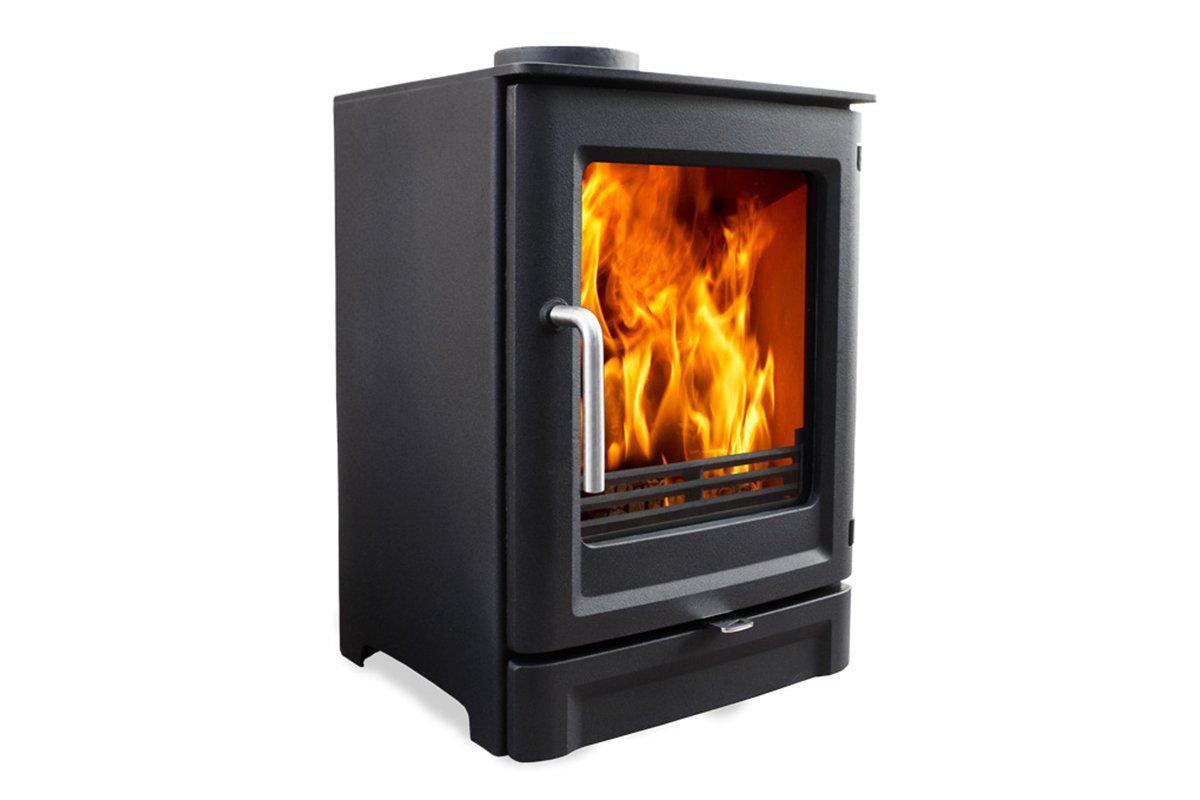

Hi-Flame R5 Ecodesign Stove

The R5 is the medium size Ecodesign Ready Stove in Hi-Flame's new family of stoves.  Hi-Flame's R5 is probably one of the very best performing all-round value for money Defra Approved 5kW Ecodesign stoves you can buy anywhere. Incorporating the latest clean burning combustion technology the R5 offers you an outstanding A+ rated efficiency of 82.6% with extremely low emissions. CO is a third lower than the required 2022 Ecodesign limit with NOx, OGC and PM being even lower by approximately 50%. Build quality as you'd expect from one of Ireland's biggest stove brands is exceptional with high quality F-Type castings for the door and plinth fascia. The discreet user-friendly single slider provides precise control of the combustion air and the direct external air supply inlet for well-insulated homes is standard. There's also an integral cast iron fronted store stand option available (R5-LS).



Specification

Model name

 5

Nominal heat output to room(kw)

 5

Efficiency(%)

 83

Dimension(H*W*D)(mm)

 528*387*348

Flue outlet

 5in/125mm

Glass size(mm)

 283*313

Combustion chamber/ firebox size(mm)

 329*215*270

Maximum log length(mm)

 305

Maximum Fuel Load(KG)

 1.8

Ecodesign Energy Efficiency Rate

 A+

Mean CO emission (vol%)

 0.08

Gross weight(kg)

 68

Net weight(kg)

 57.4

































Drawing



Documents

R5 Instruction Handbook

ERP Label R5

ERP Data R5

ERP Fiche R5

EcoDesign 2022 Test Results

Dimensions
