HWAM 3640C

A wood-burning stove with high heating capacity and a very low particle emission

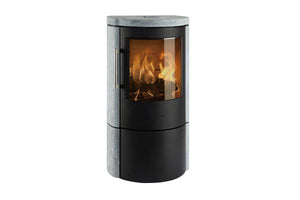

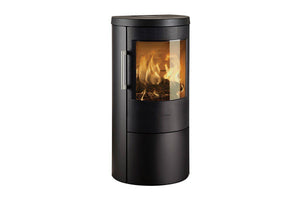

HWAM 3640 is a eco-friendly wood-burning stove and a variant of HWAM 3630 with the same height and shape but without side glass. Like the other models in the series, it is equipped with a ventilated handle and a locking system that makes it easy to open and shut the door.

Options:
HWAM 3640m (modern door) - Available in white, grey or black steel
HWAM 3640c (classic door) - Available in grey or black steel
HWAM 3640m (modern door) - Available in soapstone or sandstone cover - grey or black steel
HWAM 3640c (classic door) - Available in soapstone or sandstone cover - grey or black steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

You can also order the stove with an exclusive Rosewood stone cover, or in a white version with a modern door.

Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-9kW
Nominal heat output (kW) 6,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 11/12
Combustion chamber width (cm) 35
Height (cm) Stove body 114,8
Width (cm) 60
Depth (cm) 44,2
Weight
Weight (kg) 139
Weight (kg) With Stone Cladding
208
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 40
Distance to inflammable materials, front(cm) 90
Distance to inflammable materials, corner location (cm)
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 90
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 78,3/80,7
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings

Downloads
