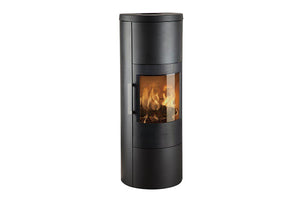

HWAM 3660C

The minimalist exterior conceals advanced technology, a firewood box and a heat storage compartment

HWAM 3660 is an ecofriendly and tall, attractive wood-burning stove that has a storage space beneath the combustion chamber and a heat storage compartment at the top. When the heat storage compartment is filled with stone, some of the heat is retained and subsequently given off over several hours.

Options:
HWAM 3660m (modern door) - Available with white, grey or black steel
HWAM 3660c (classic door) - Available with grey or black steel

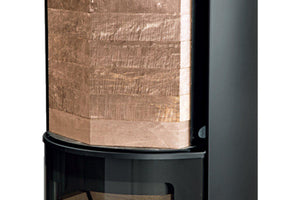

HWAM 3660m (modern door) - Available with rosewood, soapstone or sandstone cover - grey or black steel

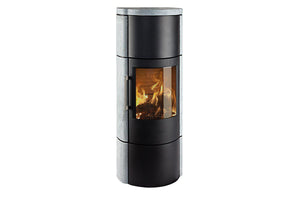

HWAM 3660c (classic door) - Available with rosewood, soapstone or sandstone cover - grey or black steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-9kW
Nominal heat output (kW) 6,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 11/12
Combustion chamber width (cm) 35
Height (cm) Stove body 150,8
Width (cm) 55,6
Depth (cm) 44,2
Weight
Weight (kg) 171
Weight (kg) Heat Retaining Stones 55
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 40
Distance to inflammable materials, front(cm) 90
Distance to inflammable materials, corner location (cm)
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 90
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 78,3/80,7
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes
