HWAM 4640M

A wood-burning stove that presents itself as a lovely and elegant piece of furniture and yet is humble without compromising on any technical solutions. This model is the right choice for anyone wanting an elegant stove that does not compromise on the technological solutions. The extra wide glass section offers a perfect view of the warm flames.

Options:

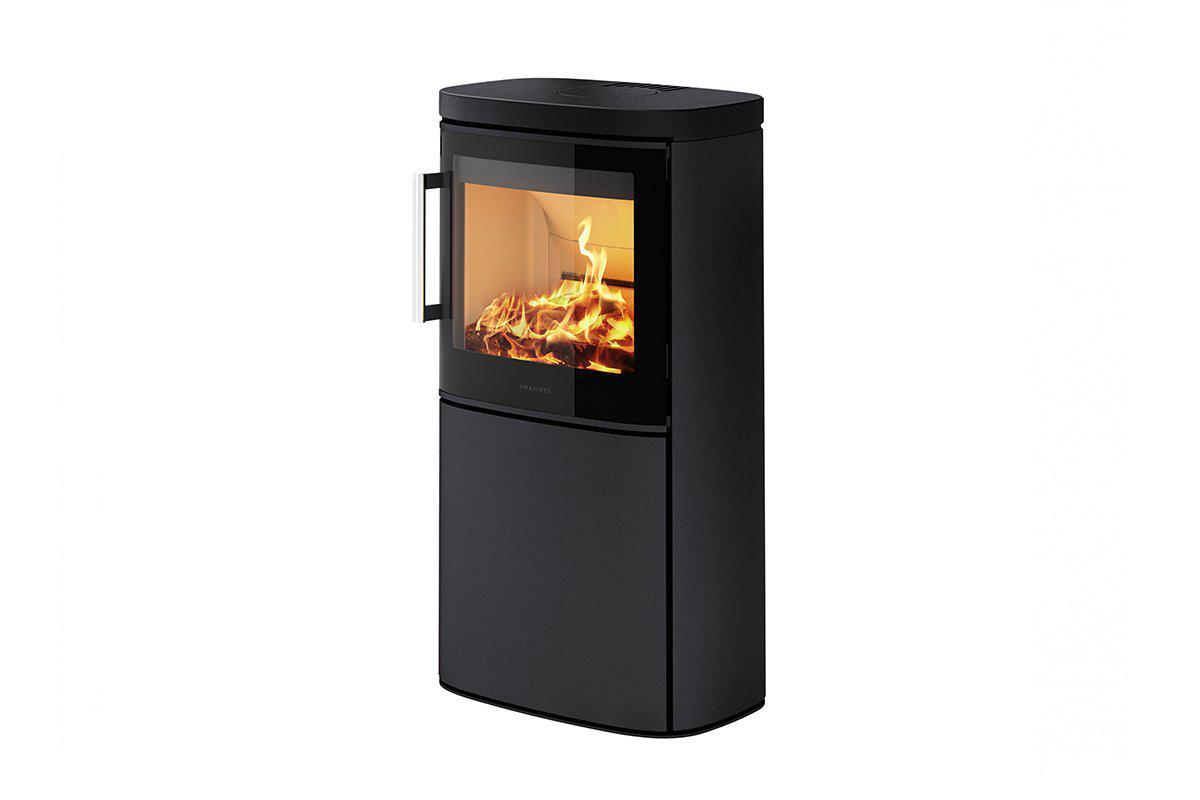

HWAM 4640m (modern door) - Available in white, grey or black steel
HWAM 4640c (classic door) - Available in grey or black steel

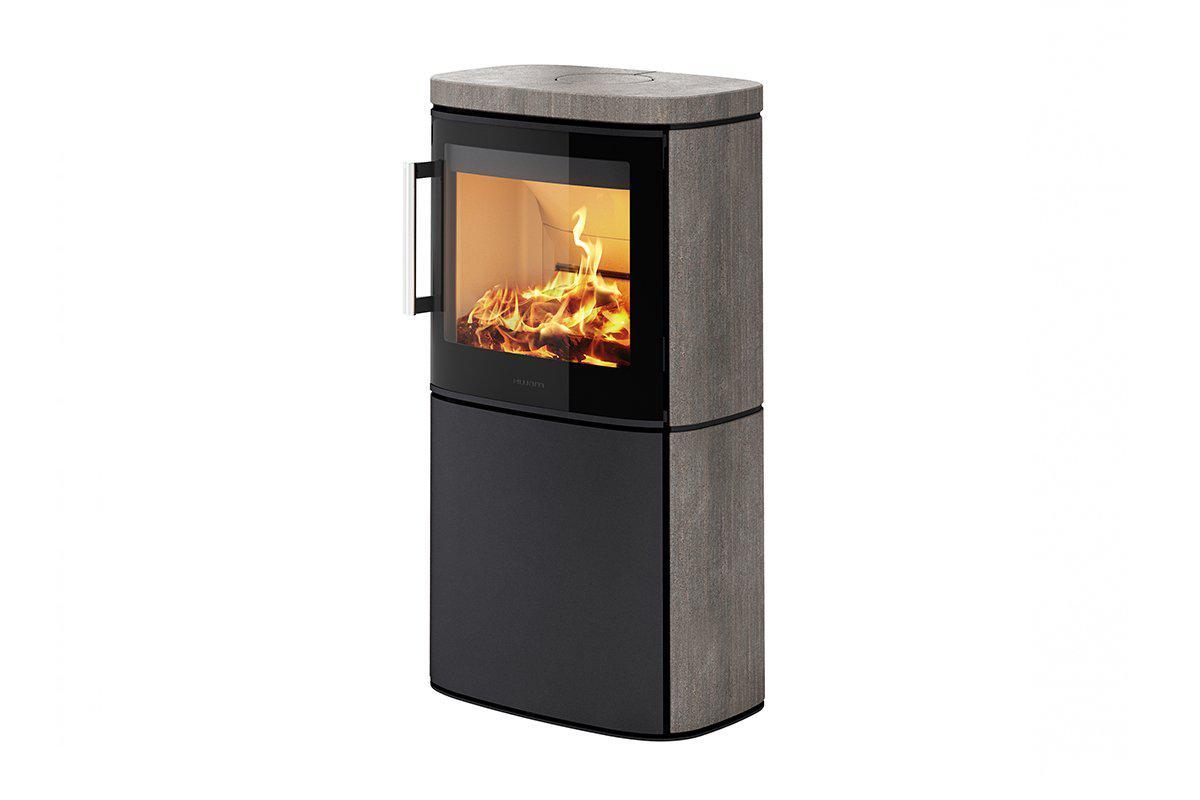

HWAM 4640m (modern door) - Available with soapstone or sandstone cover - black or grey steel
HWAM 4640c (classic door) - Available with soapstone or sandstone cover - black or grey steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.


Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-9kW
AutomaticTM nominal heat output (kW) 7,0
IHSTM nominal heat output (kW) 8,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 49
Height (cm) Stove body 114,3
Width (cm) 63,0
Depth (cm) 40,6
Weight
Weight (kg) 133
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 20
Distance to inflammable materials, side(cm) 35
Distance to inflammable materials, front(cm) 75
Distance to inflammable materials, corner location (cm) 12-41
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 130
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 80/81
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings


Downloads
  1. Hwam Brochure UK
  2. User's manual for the HWAM 4600 series (EN)
  3. User's manual for the HWAM 4600 series with HWAM® SmartControl™ (EN)
  4. User Manual HWAM® SmartControl™ Generation 2 (EN)
  5. Assembly instructions for combustion air system (HWAM 4620)
  6. Assembly instructions for combustion air system (HWAM 4640, 4660 & 4680)
  7. Assembly instructions for combustion air system for stoves with HWAM®
  8. SmartControl™ (HWAM 4620)
  9. Assembly instructions for combustion air system for stoves with HWAM®
  10. SmartControl™ (HWAM 4640, 4660 and 4680)
  11. Mounting of stone cover (HWAM 4620 & 4640)
  12. Mounting of stone cover (HWAM 4660 & 4680)
  13. Mounting the heat storage (HWAM 4660 & 4680)
  14. Mounting adjustable feet
  15. Quickguide - HWAM® SmartControl™ (EN)
