WIKING Miro 3 Wood Store

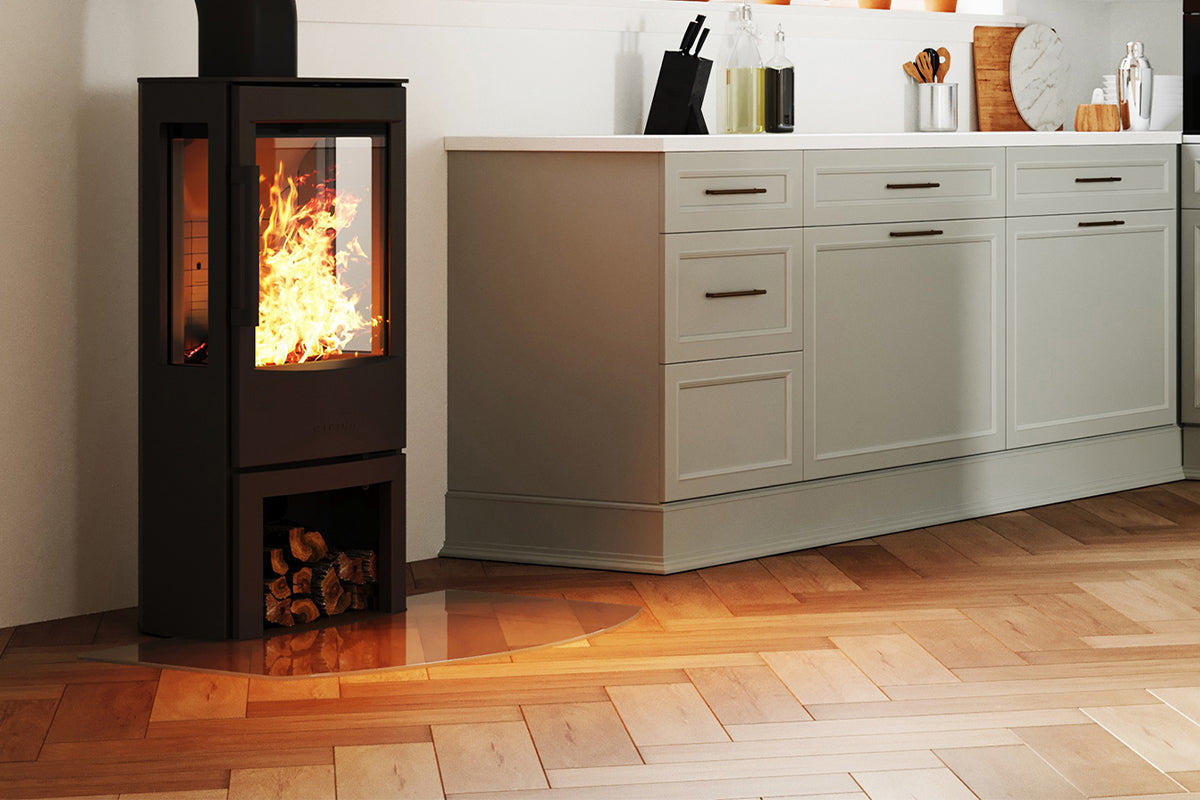

WIKING Miro 3 Wood Storage Stove with Side Glass

The WIKING Miro 3 Wood Store Stove is an impressive Danish made, contemporary wood burner designed to tick all of the boxes – Defra approved, DIBt tested, big windows so you get a great view of the fire, single user-friendly control, practical 4.9kW nominal output, with 3 to 8kW heat range and tall enough to provide real presence but with a small footprint that makes it ideal for free-standing or corner installations. It's no wonder that the competitively priced WIKING Miro 3 Wood Store wood burning stove has become such a popular choice for so many home owners looking for a striking, modern focal point and practical heat source to warm their living spaces.

The superior steel bodywork, premium cast iron fire chamber door and cast fire grate with separate ash pan tell you immediately that the WIKING Miro 3 Wood Store with its 300mm high log store is a high quality stove that has been incredibly well built with every aspect of its design and operation thoroughly considered by Wiking. From its perfectly balanced cast iron door which ensures a secure room seal with the minimum of effort (all thanks to Wiking's patented closure mechanism) to the meticulously engineered and densely moulded vermiculite fire chamber lining which maximises heat retention and eliminates cold corners to increase the WIKING Miro 3 Wood Store's efficiency and minimise its emissions what the Miro 3 delivers you belies its modest price tag.

The WIKING Miro 3 Wood Store Stove also provides outstanding clean burning credentials which are aided by the Wiking Automatic which comes as standard. This is a tried and tested, purely mechanical device which boosts the Miro 3's supply of primary combustion air when lighting and refuelling and at the end of the burn cycle to help keep the fire chamber hotter so that more particulates are burned off. Pre-heated tertiary air supplies additional combustion air at the top of the fire chamber to burn off even more of the remaining particulates just before they leave the stove. All of this ensures maximum heat from your wood fuel with the minimum emissions being produced.

Flame height and the WIKING Miro 3 Wood Store's 3.0kW to 8.0kW heat output range are precisely managed with the single user-friendly slider control just under the fire chamber door. Being DIBt tested and having direct external air supply capability means that the quality of the Miro 3's room seal ensures that you can safely install it in low energy homes – even those that meet PassiveHouse or AECB CarbonLite standards or have MVHR systems. When all is said and done though, for most people the best thing about the Miro 3 Log Store is the fact that you get a  180º plus view of the bright dancing flame patterns it produces through its three full height air washed windows. Everything about the Miro 3 has simply been designed to allow the flames to be the centre of attention.

NB Also check out the Miro 3 model variation with the open door-fronted log store



Technical

WIKING Miro 3 Wood Store Stove Key Facts


Brand: Wiking
Model WIKING Miro 3 Wood Store
Nominal Heat Output:    nominal 4.9kW
Heat Output Range:   3.0kW to 8.0kW depending on fuel load
Efficiency (Net):   Up to 78.0%
ErP Energy Rating A
Defra Smoke Exempt:   Yes
Fuel:   Seasoned wood logs (less than 20% moisture content)
Airwash:   Yes – top and left and right hand sides
Air Controls:

Wiking Automatic system plus secondary air control

Construction: Cast iron door and fire chamber base with steel bodywork
Flue Outlet:    Top or Rear (optional blanking plate required when using rear flue)
Flue Diameter 150mm  / 6"
Grate Type Flat bed with open / close centre grate and ash pan
Guarantee:    5 Years
Maximum Log Length 280mm / 11" approx
Standard Colour

Matt black

Optional Finishes:   Grey
Options:   Direct external air supply system (aka 'Fresh Air System')

Top flue outlet blanking plate (when using rear flue)
Net Weight:   88.0kg
Recommended Log Length (mm):  275 (11") 275 (11")
Air vent required:    Not usually in pre-2008 homes (Subject to Building Regs)
Suitable for 12mm Hearth:   Yes
Direct Air Inlet (DEAS):  Base or rear. 76mm dia (additional fresh air kit required)
Overall Dimensions:  H1012  W468  D356
Minimum Combustible Distances (mm):   Sides 520  Rear 100







Downloads

Wiking Stoves Catalogue

Wiking Miro User Manual

Wiking Miro Energy Label and Product Fiche

Wiking Miro Direct Air Assembly

Wiking Miro Pedestal Assembly

Wiking Miro Plinth Assembly

Wiking Miro Wall Assembly

Wiking Miro Top to Rear smoke outlet change

Dimensions

WIKING Miro 3 Wood Store Dimensions
